13.4 MINI FRAME SUSPENSION OPTIONS
The VTX A8 Mini Frame can be used in single-point configurations using the center shackle position of the spreader bar. Alternatively,
the two side shackle positions can be used to facilitate dual-point configurations. When a single-point is used, the side shackle positions
can be used for safety attachment and vice-versa.
CAUTION: Always make sure that the same hole position is used on both side arms. Failing to use the same position
on both sides can result in damaging the Mini Frame.

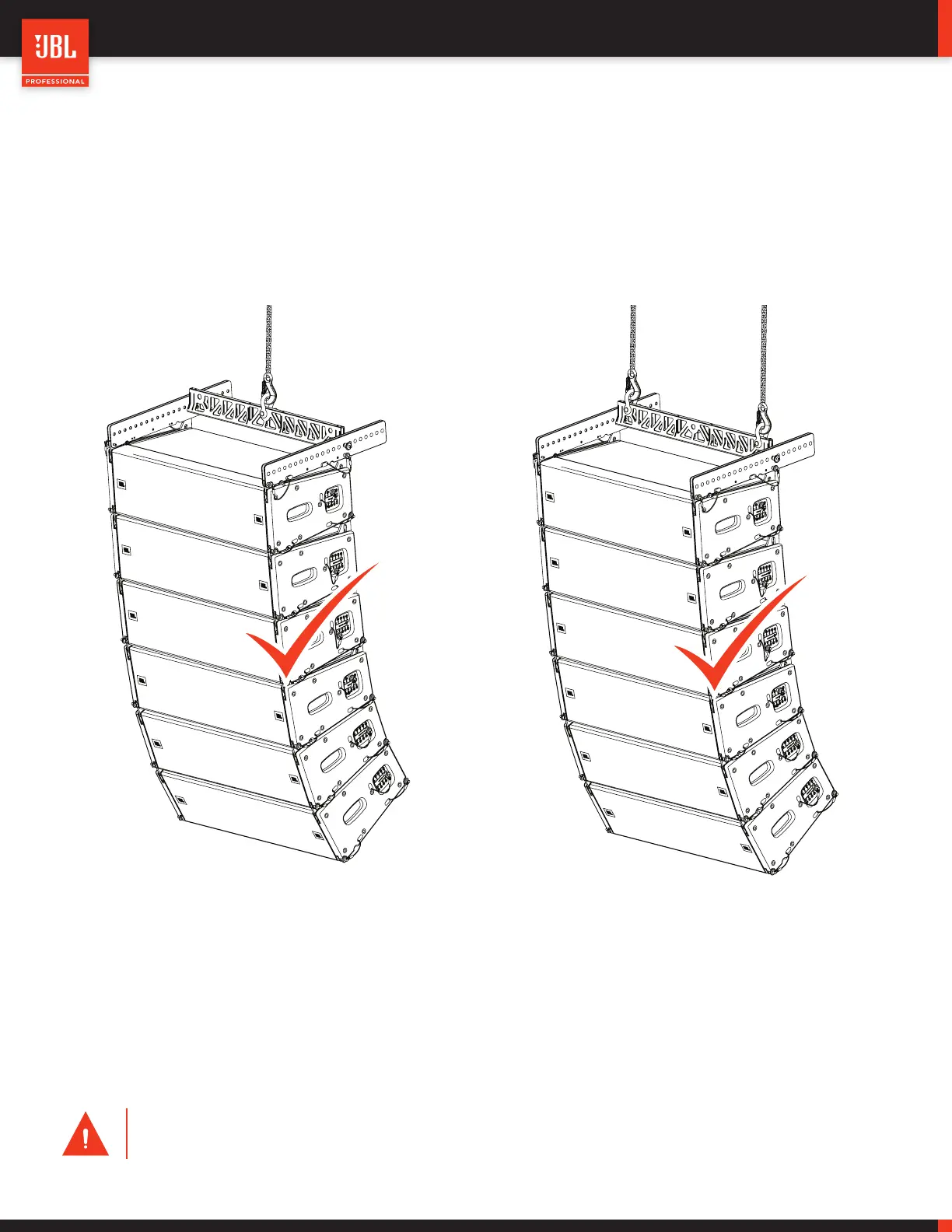

SINGLE-POINT DUAL-POINT
SIDE-BY-SIDE
