11.2 ATTACHING A8 TO B18

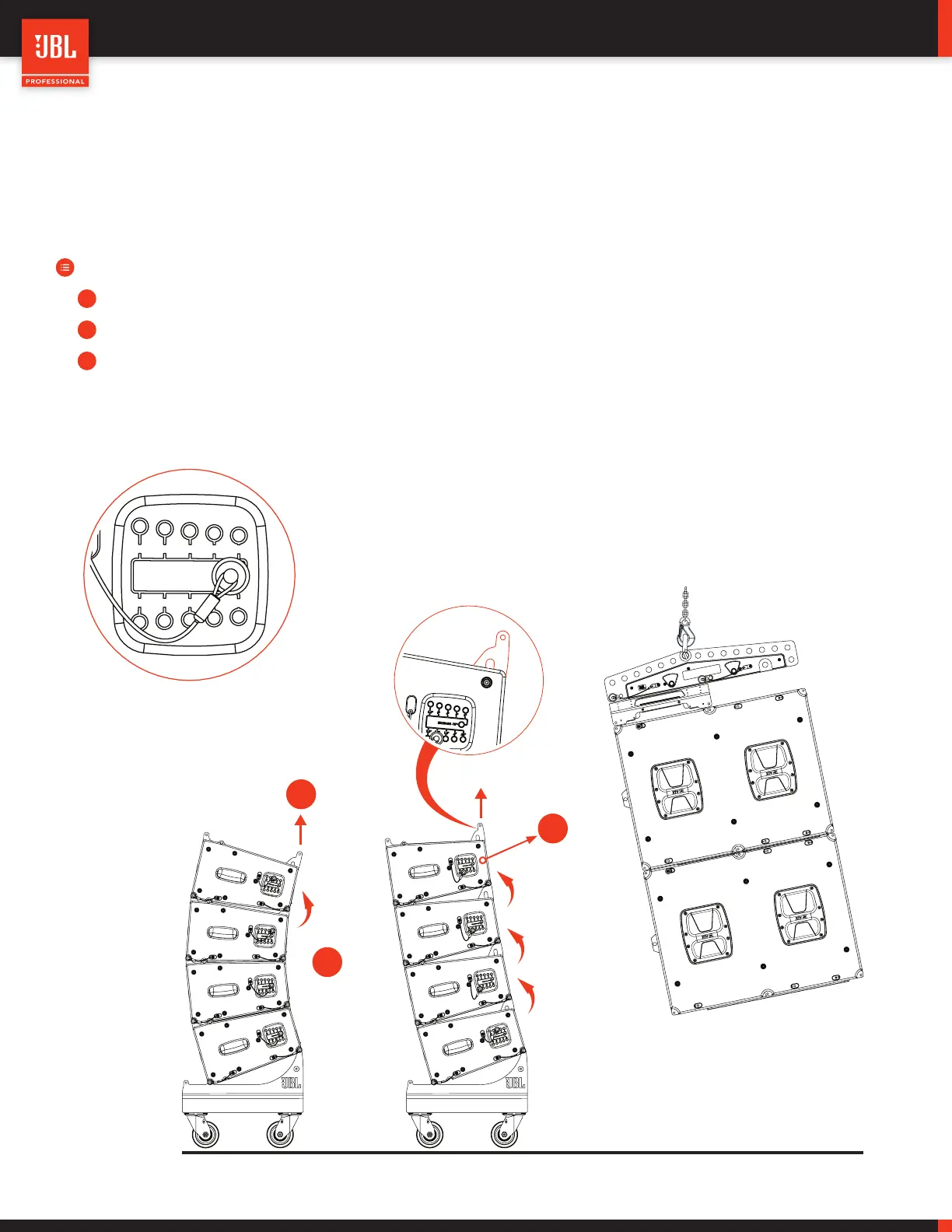

Once the VT has been disconnected from the flown array of B18s, the first cluster of A8 cabinets can be added to the array. Note that
the first VTX A8 connected to a B18 subwoofer is always pinned to the 4° position. This allows the top A8 cabinet to sit parallel with the
Array Frame.
STEPS:
• Follow the procedures in chapter 9 - Deploying Standalone A8 Systems of this manual to assemble the A8 clusters.
• Preset the angles of the A8 cabinets, then use the rear panel handle to lift each cabinet until it extends to its final position.
• Use your hands to pull up the top rigging arms until they fully engage. The stack connected to the array frame does not need
to be manually extended, since the electric hoist will lock those cabinets once the array is suspended.
