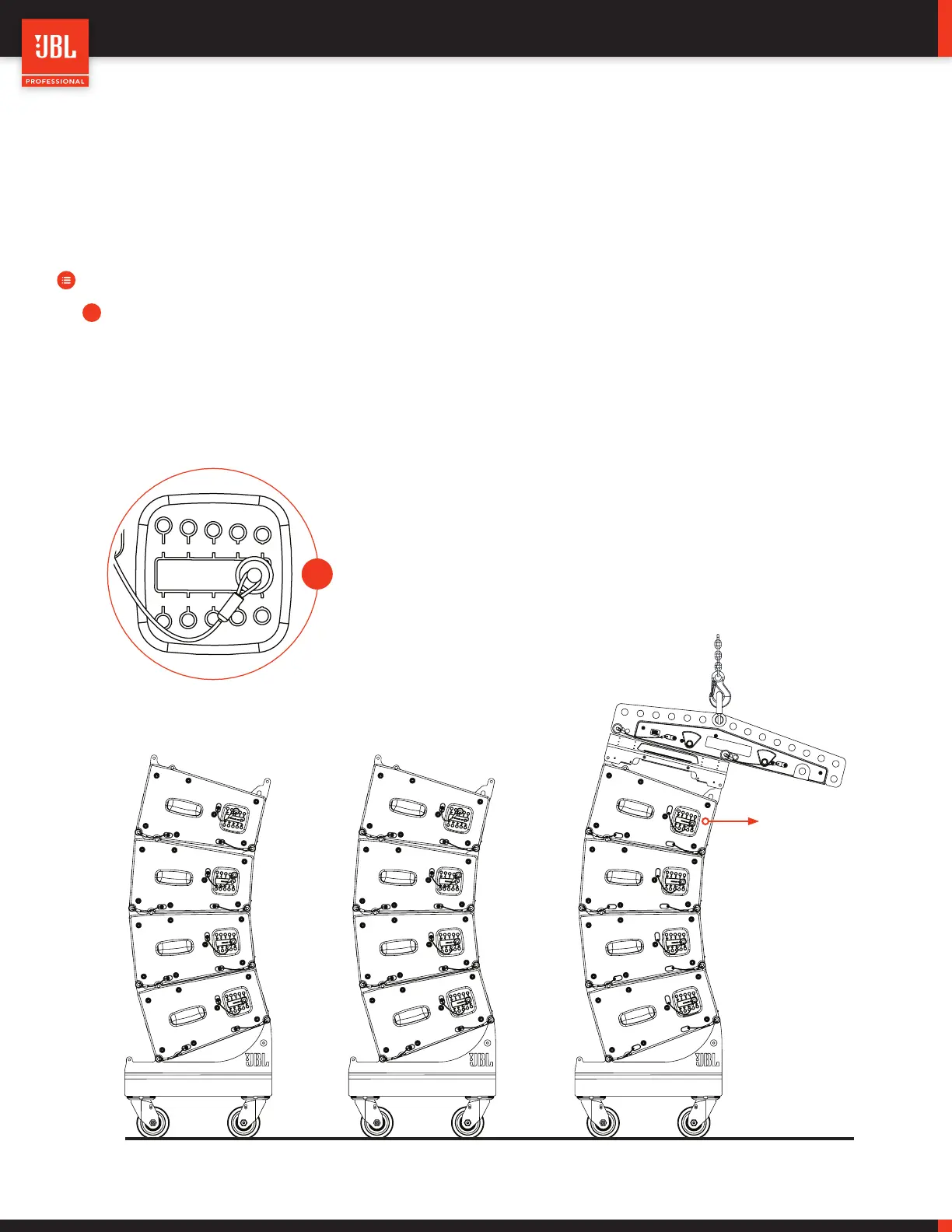

9 - DEPLOYING STANDALONE A8 SYSTEMS
Suspending standalone VTX A8 arrays is a simple and straightforward process. Carefully follow the steps below to correctly and safely
suspend an array. Instructions on suspending mixed A8/B18 arrays can be found later in this document.
9.1 PRESELECT THE ANGLES
STEPS:
• Using the quick release pins (QRPs) located on the Angle Selection Panels, select the desired inter-enclosure splay angles for
all cabinets. For each enclosure, move the QRP from its 10-degree storage position to the desired position, as indicated on
the label. If the desired angle is 10 degrees, the QRP does not need to be moved.
1
1°
2.5° 3° 4° 6° 8°
10°STORAGE
2° 1.5° 25°
ANGLE SELECTION PANEL
1
Pin Position: 4°
To Next Page
