8.5 EXTENSION BAR STORAGE POSITIONS
The Extension Bar can be stored at the top of the Array Frame for transportation and storage when not in use. Guides are available at
the top of the Array Frame to guide the Extension Bar to the storage positions. The two large QRPs are used to secure the Extension
Bar on to the Array Frame. Each A8 Array Frame can store two Extension Bars.
STEPS:

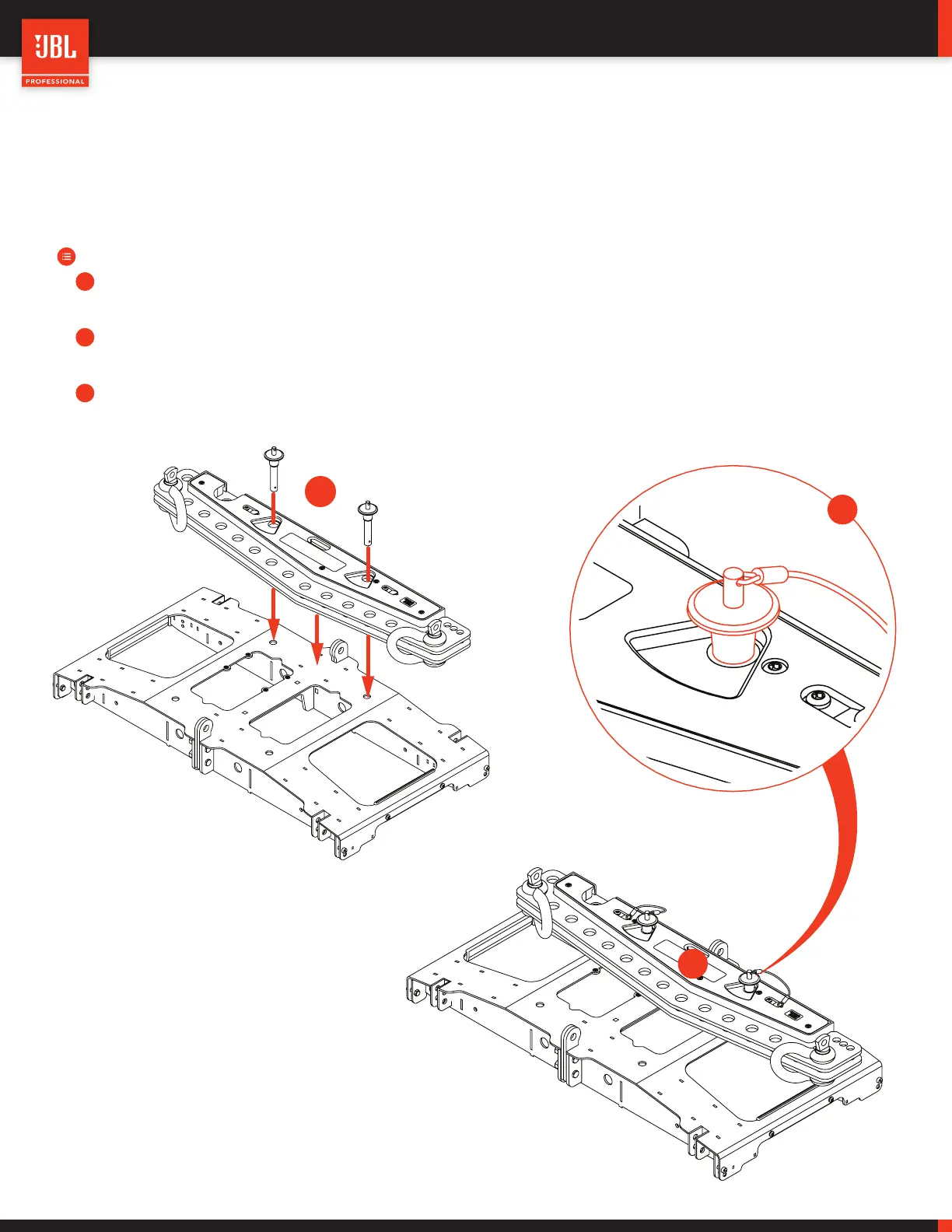

• Align the Extension Bar lengthwise above the Array Frame, ensuring that the side of the Extension Bar with the label is pointed
upwards.
• Slide the Extension Bar into place so that the two alignment locators from the bottom side of the Extension Bar seat into the
storage position cutouts in the top of the Array Frame.
• Secure the Extension Bar to the Array Frame using the two included quick release pins.
