VTX A8 | Rigging Manual

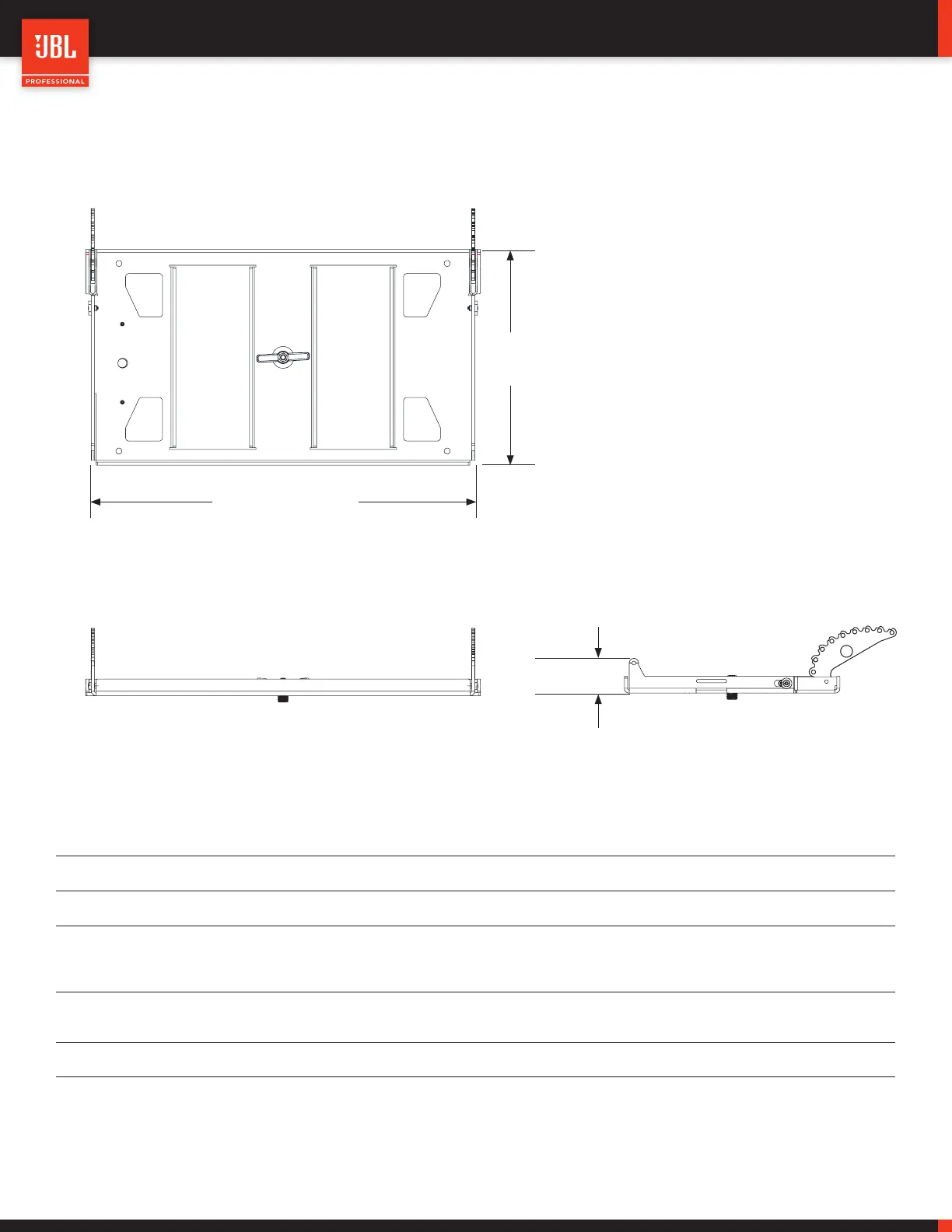

15.6 - VTX A8 BP
727 mm (28.6 in)
409 mm
(16.1 in)
57 mm
(2.2 in)
Footnotes:
1: Always use the JBL Line Array Calculator to check mechanical safety when using the VTX A8 BP Base Plate
2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions
3: Weight includes VTX A8 BP only
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced into existing products without notice as a routine expression
of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
Construction:
High-grade steel with anti-corrosion coating
Finish:
Black powder coat
Mechanical Limits
1
Maximum:
Safe Limit:
(6) VTX A8
(2) VTX A8
Dimensions (H x W x D)
2
:
57 mm x 727 mm x 409 mm
(2.2 in x 28.6 in x 16.1 in)
Net Weight
3
:
12.7 kg (28 lbs)
