JBL VTX Series Rigging Manual

29
VTX A8 | Rigging Manual
8 - ARRAY FRAME AND EXTENSION BAR
The VTX A8 AF is a lightweight array frame used for suspending VTX A8 and B18 cabinets. The frame was designed to operate in a
single-point, front-to-back, or side-by-side suspension mode using the VTX A8 AF EB Extension Bar. One Extension Bar is included with
the frame and a second Extension Bar can be added to facilitate side-by-side suspension.

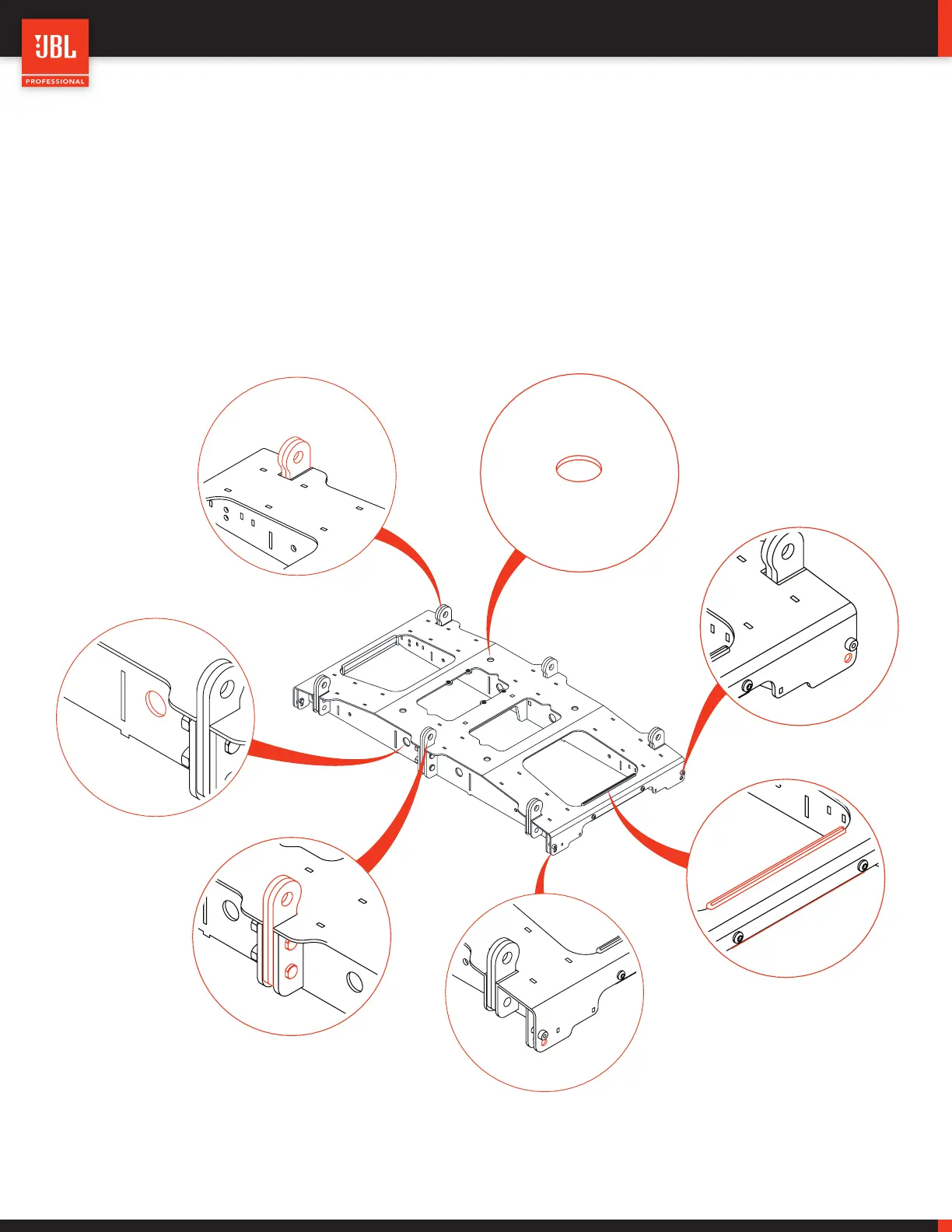

8.1 ARRAY FRAME OVERVIEW
CARRYING HANDLE
CABINET CONNECTION
POINT
EXTENSION BAR
STORAGE POSITION
LASER LIGHT
EXIT HOLE
EXTENSION BAR
CONNECTION TABS
CABINET CONNECTION
POINT
EXTENSION BAR
CONNECTION TABS
