18
VTX A12 | Rigging Manual

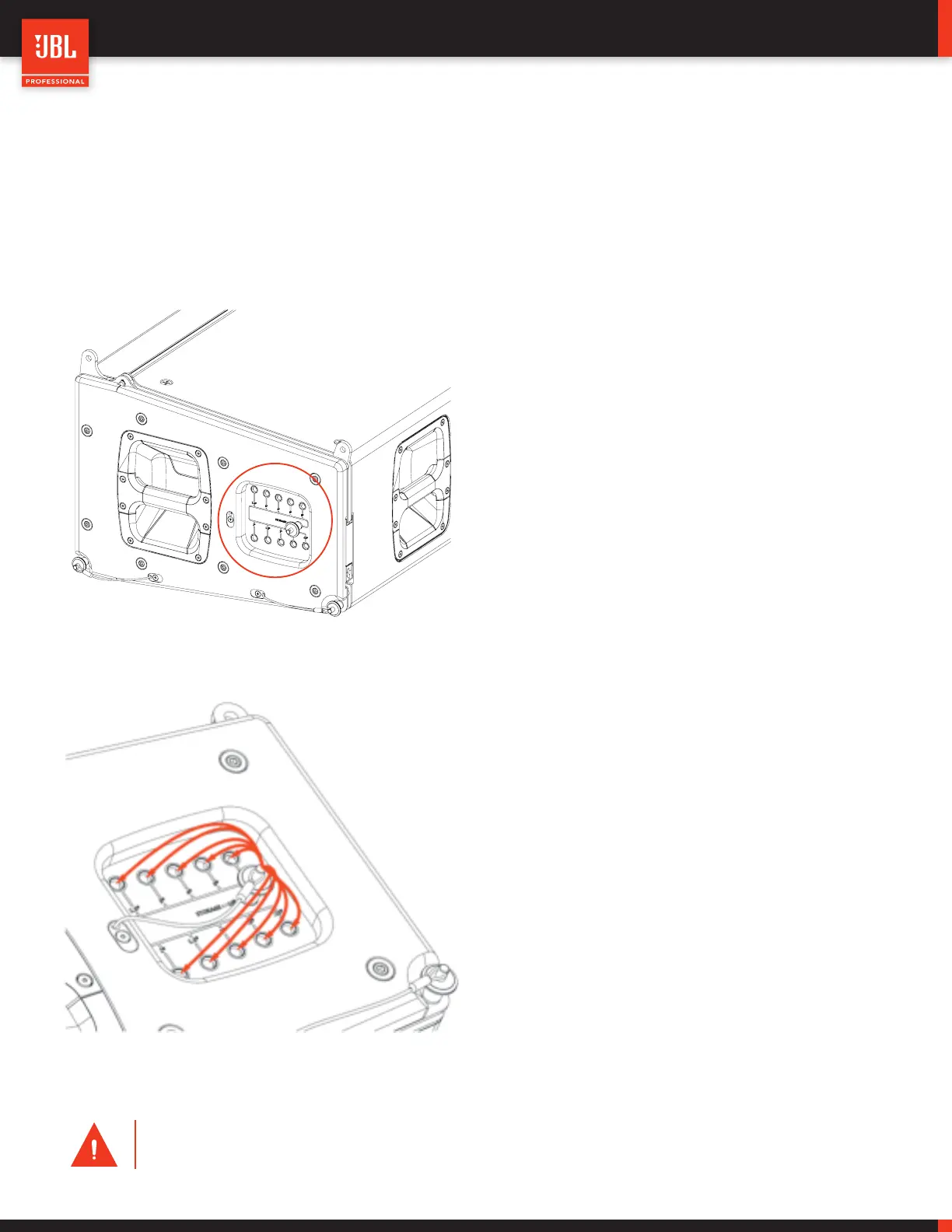

6.3 VTX A12 - ANGLE SELECTION
Each VTX A12 includes an Angle Selection panel on each side that is used for selecting the cabinet-to-cabinet splay angle. The options
are marked in degrees and the panel allows for eleven unique positions ranging from 0.25 degrees to 10 degrees.
VTX A12 ANGLE OPTIONS: 0.25°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4°, 6°, 8°, 10°
A dedicated quick release pin is used to select an angle. Angles
are selected while the VTX A12 cabinets are on a VTX A12 VT
resting on the ground. When the system is on the ground, the
quick release pins are not under load and can be moved freely to
a desired position.
During transportation, VTX A12 cabinets should always be set to
10 degrees. This ensures that the rigging system is locked, pre-
venting any accidental movement or angle selection.
To select an angle, remove the quick release pins from the stor-
age position (10°) and set them to the desired position. After the
array has been lifted from the ground, the weight is shifted to the
quick release pins and selecting an angle is no longer an option.
CAUTION: Every quick release pin on a VTX A12 system must always be placed in a hole. Do not suspend a VTX
A12 system if any pins are hanging freely.
