36
VTX A12 | Rigging Manual

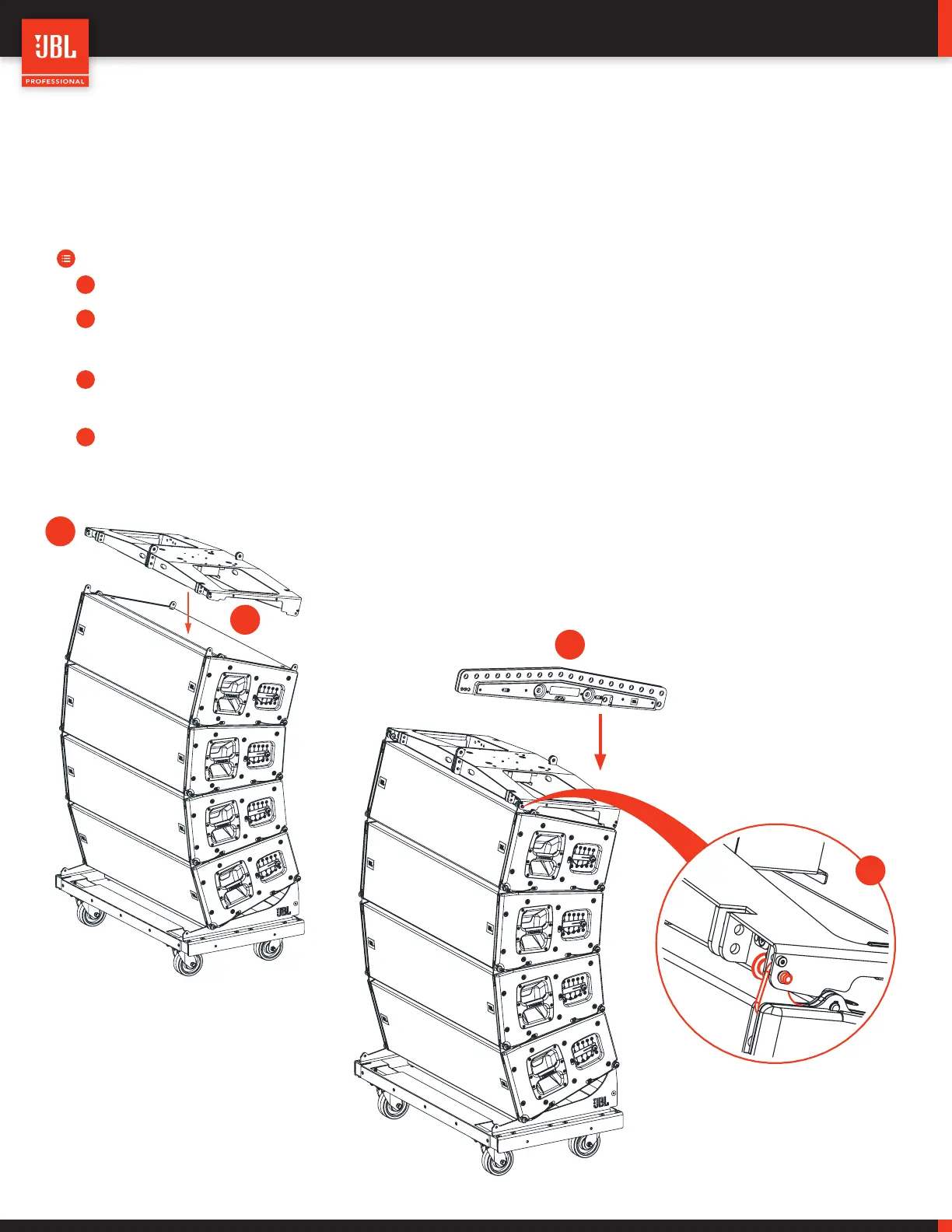

8.10 ATTACHING THE ARRAY FRAME
The VTX A12 Array Frame was designed to be both lightweight and easy to handle, whether it is transported mounted on an array or
separately in a case. Since the Extension Bar was designed to travel attached to the Array Frame, these instructions assume this con-
figuration. Although transportation together is recommended, it is not required.
STEPS:
• For easiest attachment, separate the Array Frame from the Extension Bar before attaching to the array.
• Ensure that the top cabinet is set to the correct angle and the Array Frame is properly oriented. Lift the frame over the top A12
cabinet on the cart and rest it on the four QRP attachment points on the top of the cabinet.
• Remove the quick release pins from their storage positions and place each one into its respective attachment position. The
quick release pins should be attached from the inside of the Array Frame.
• Once the Array Frame is secured to the top of the cabinet, the Extension Bar can be attached. Confirm its correct orientation
by consulting LAC-3 and ensure that the correct A, B or C position is attached using both of the included large-gauge QRPs.
1
2
1
2
3
4
3
4
