31
VTX A12 | Rigging Manual

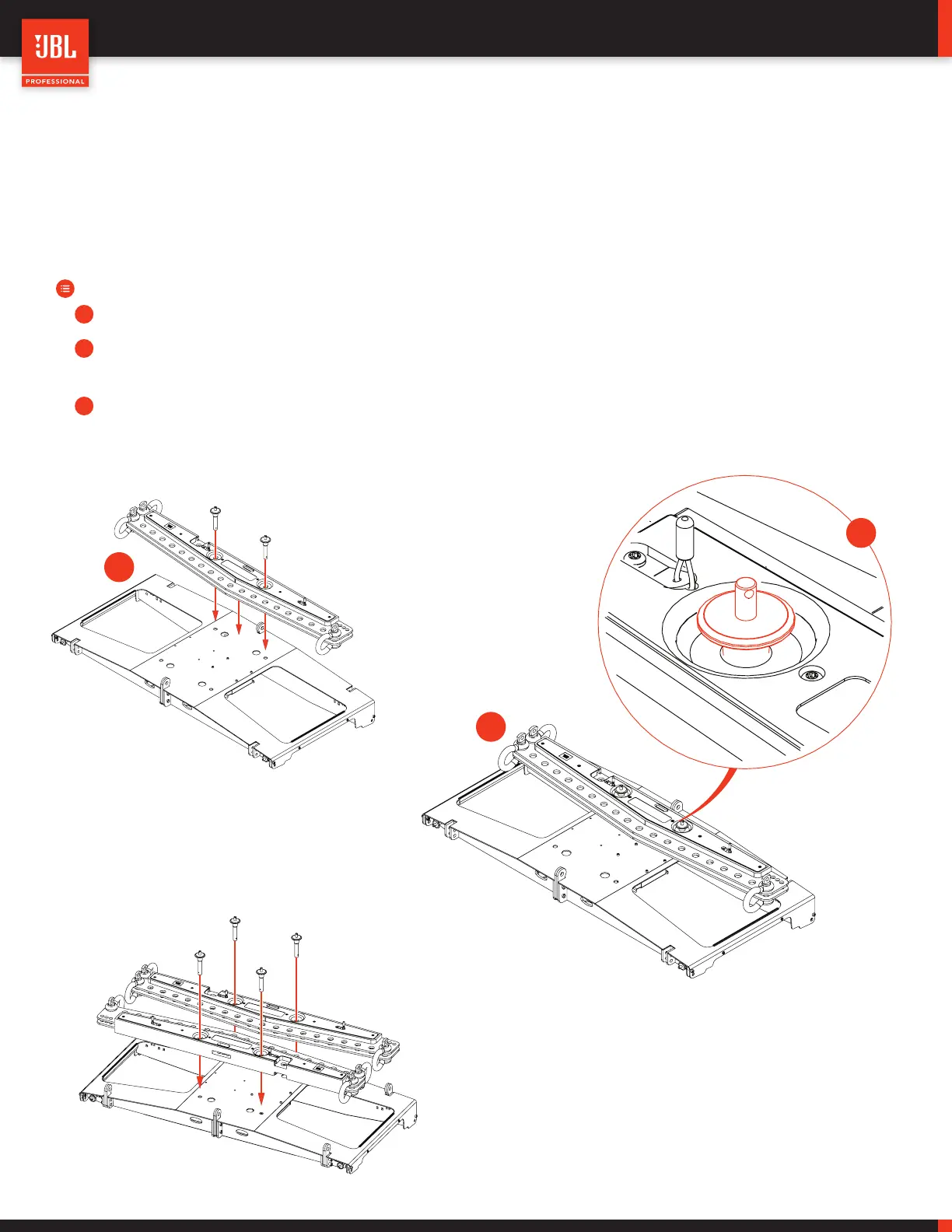

8.5 EXTENSION BAR STORAGE POSITIONS
The Extension Bar can be secured to the top of the A12 Array Frame for transportation and storage when not in use. Guides have been
built into the top of the A12 Array Frame and the storage position of the Extension Bar in order to facilitate quicker attachment, and once
the Extension Bar is properly placed for storage, the attached quick release pins from the Extension Bar can be used to secure the two
pieces together. Each A12 Array Frame can facilitate up to two A12 Extension Bars.
STEPS:
• Place the Extension Bar across the top of the Array Frame, aligned lengthwise (left to right) with the label side facing up.
• Slide the Extension Bar into place on top of the Array Frame, with the two alignment locators on the bottom of the Extension
Bar fitted into the storage position alignment cutouts in the top of the Array Frame.
• Use the two included quick release pins to secure the Extension Bar to the Array Frame.
DUAL EXTENSION BARS
To store a second Extension Bar, repeat the above steps, se-
curing the second Extension Bar parallel to the first on top of
the Array Frame.
1
2
1
2
3
3
