VTX A12 | Rigging Manual
STEPS:

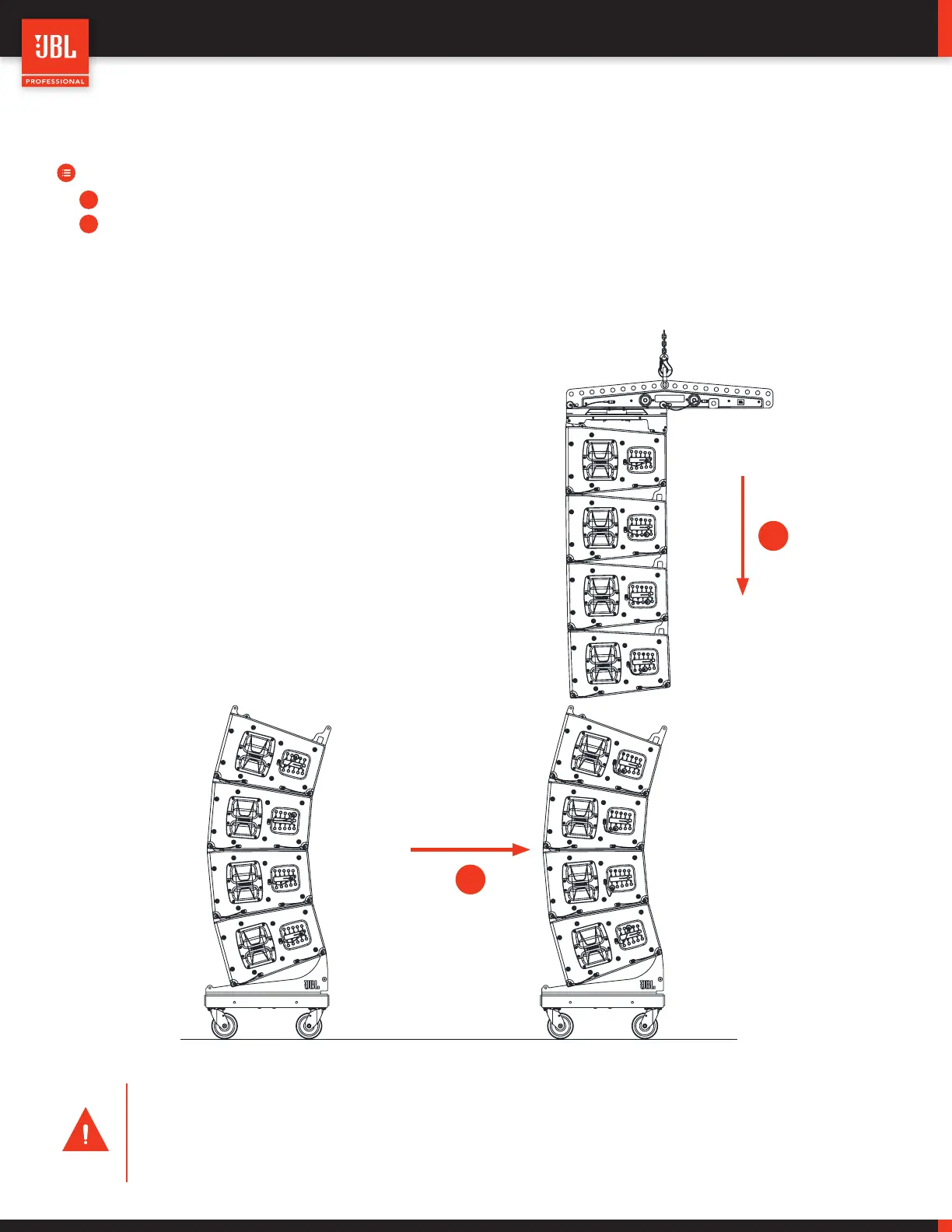

• Raise the suspended cluster of VTX A12 cabinets and align the next cart of VTX A12 cabinets below it.
• Once the two clusters are aligned, carefully lower the suspended cluster until the front attachment points are nearly touching
the front attachment points of the cluster on the cart. When the attachment points are aligned, lower the suspended cluster
until the front attachment points come together. Insert the quick release pins to attach the suspended cluster to the stack on
the cart at the front.
9.3 ATTACH THE NEXT STACK
CAUTION:
• Always check that each cabinet is pinned to the same angle on each side of the enclosure.
• The top cabinet in each array should be pinned in accordance with the positioning instructions in chapter 8 –
VTX A12 AF Array Frame And EB Extension Bar.
1
2
1
2
