27
VTX A12 | Rigging Manual
8.2 EXTENSION BAR OVERVIEW
The VTX 12 AF EB Array Frame Extension Bar is used to connect the Array Frame to the suspension points. One Extension Bar is in-
cluded with the VTX A12 AF and additional Extension Bars can be purchased and used depending on the application. The extension is
compatible with 5/8-inch shackles, three of which are included. Two shackles are used for suspension and one for cable relief. Two quick
release pins are included for attaching the Extension Bar to the Array Frame.
TIP: The VTX A12 AF Extension Bar is only compatible with 5/8-inch shackles. Three 5/8-inch shackles are included with
each Extension Bar and Array Frame.
CAUTION: Always use high-quality 5/8-inch rigging shackles made by reputable manufacturers. Always inspect all
rigging components for potential defects before use.

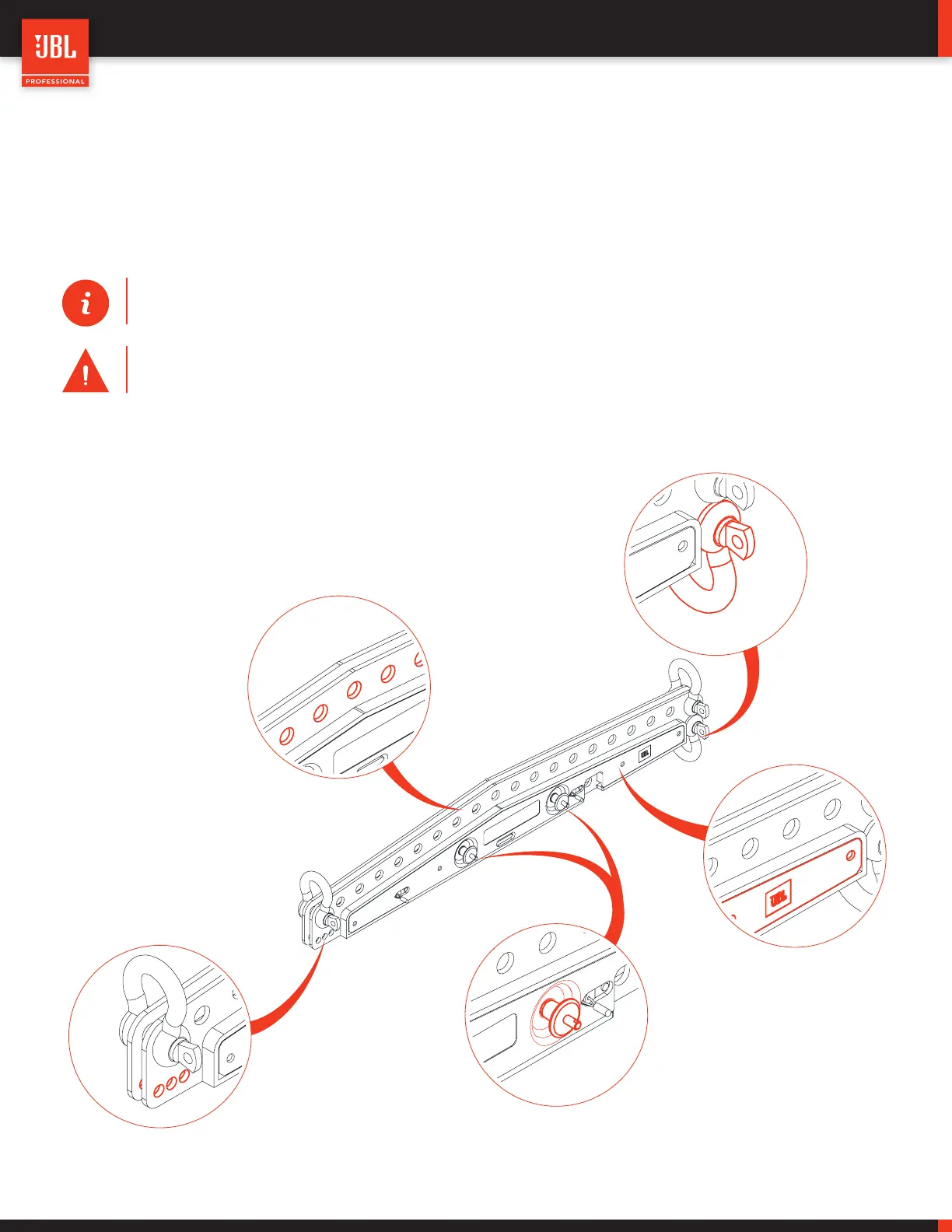

SHACKLE ATTACHMENT POINTS
FOR SUSPENSIONS
SPEAKER CABLE ATTACHMENT
POSITION
PLASTIC PROTECTIVE COVER
ARRAY FRAME
ATTACHMENT POINTS
QUICK RELEASE PINS
STORAGE POSITIONS
