VTX A12 | Rigging Manual
8.8 INSTALLING THE LASER BRACKET
A laser inclinometer can be installed onto the VTX A12 Array Frame using the included mounting bracket. The bracket is designed to
work with the JBL VTX LZ laser unit, TEQSAS LAP-TEQ laser inclinometer, or RECLINE laser inclinometer. The Array Frame includes
front and back exit holes to allow the laser light to shine through.
TOOLS REQUIRED: Some tools are required to attach the laser bracket. All necessary hardware is included with the
VTX A12 AF.
STEPS:

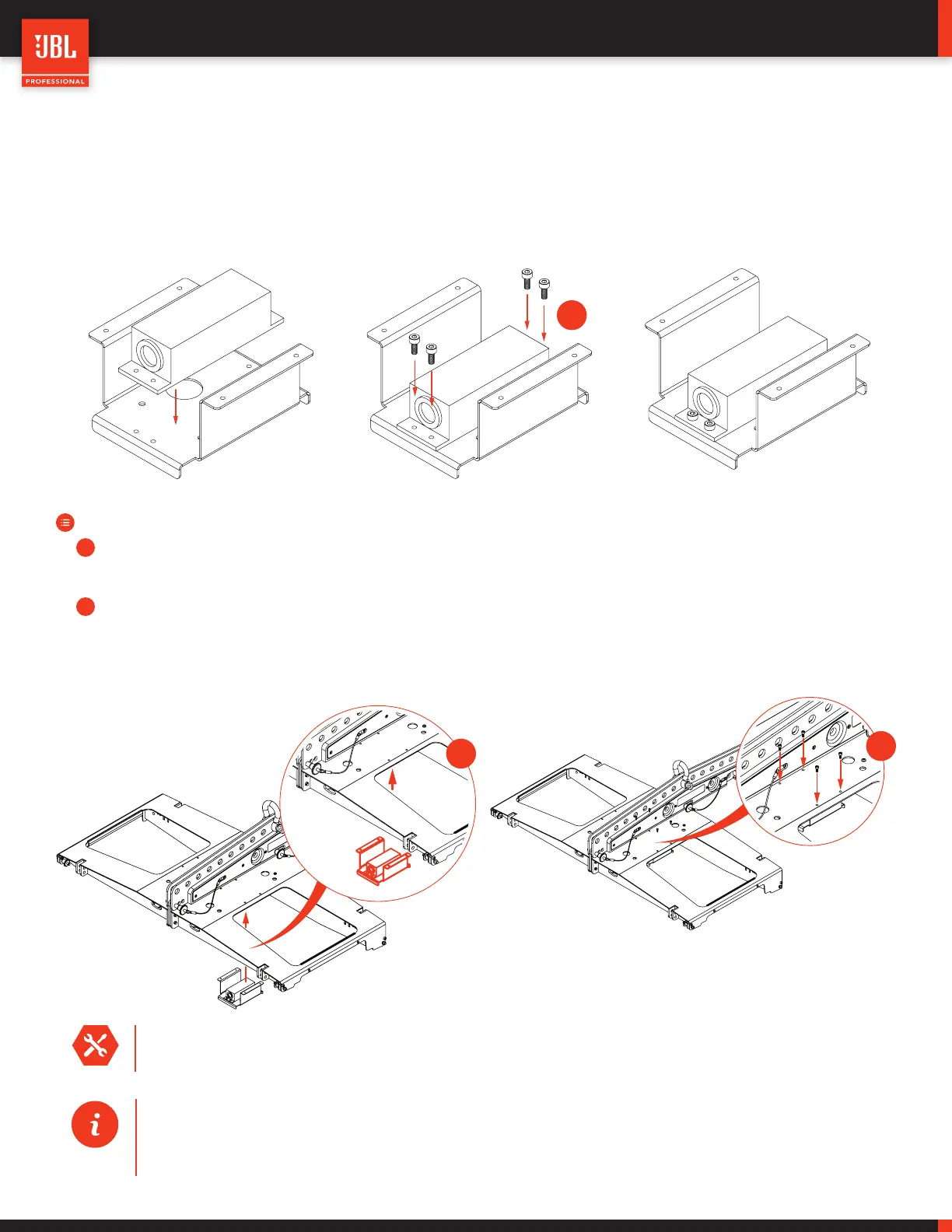

• Use the included screws to secure the laser unit to the mounting bracket. Center the laser unit in the bracket and tighten the
four hold-down screws.
• Use the additional included fasteners to secure the laser bracket on to the Array Frame. The Array Frame’s orientation deter-
mines whether the bracket should be installed facing forward or to the rear of the Array Frame.
TIPS:
• Additional laser brackets can be purchased separately.
• Make sure to select the appropriate orientation for the laser bracket before installation.
1
2
1
2
2
