STEPS:

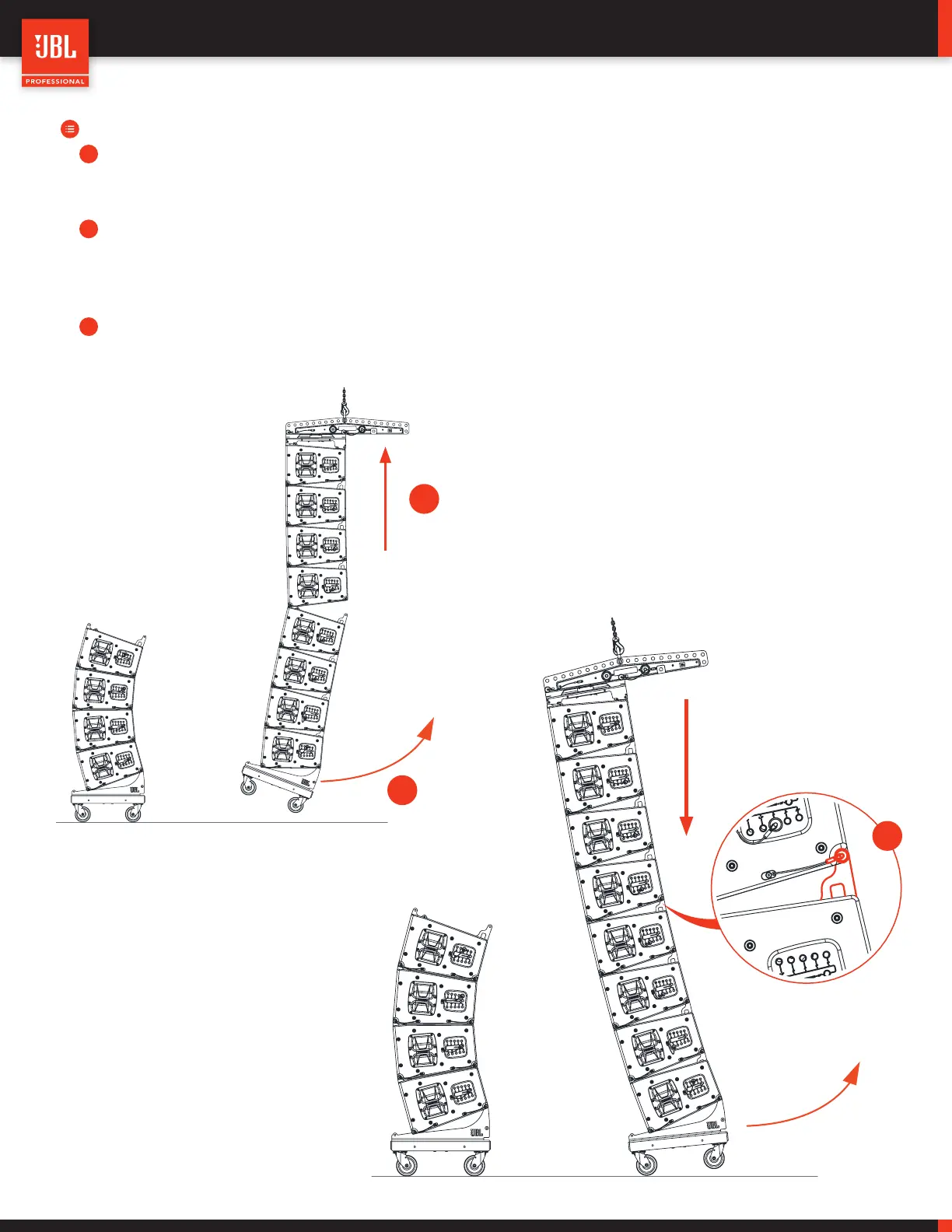

• With the front quick release pins set, use the suspension hoist to raise the attached clusters. The second cluster may swing
forward slightly as it lifts off the ground and the cabinets expand to their correct inter-enclosure angles. Be sure the Vertical
Transporter is completely off the ground and the cluster is able to fully expand before proceeding to the next step.
• When the second cluster is fully expanded, grab the cluster by the rear handlebar on the VT and gently pull back towards the
rear of the array. While doing this, lower the array so that the front wheels of the Vertical Transporter touch the ground. Keep
lowering the array until the rear attachment points engage with the rear attachment receptacles of the stack on the cart and the
holes for the quick release pins align. Insert the quick release pins and attach the suspended cluster to the stack.
• Once all four quick release pins have been secured, disconnect the Vertical Transporter (VT) by removing the two rear quick
release pins,followed by the front pins, then continue adding speakers to the suspended array.
