JBL VTX Series User Manual

20
VTX A12 | Rigging Manual
1°
1°
2.5°
2.5°
3°
3°
4°
4°
6°
6°
8°
8°
10°
10°
STORAGE
STORAGE
2°
2°
1.5°
1.5°
.5°
.5°
.25°
.25°

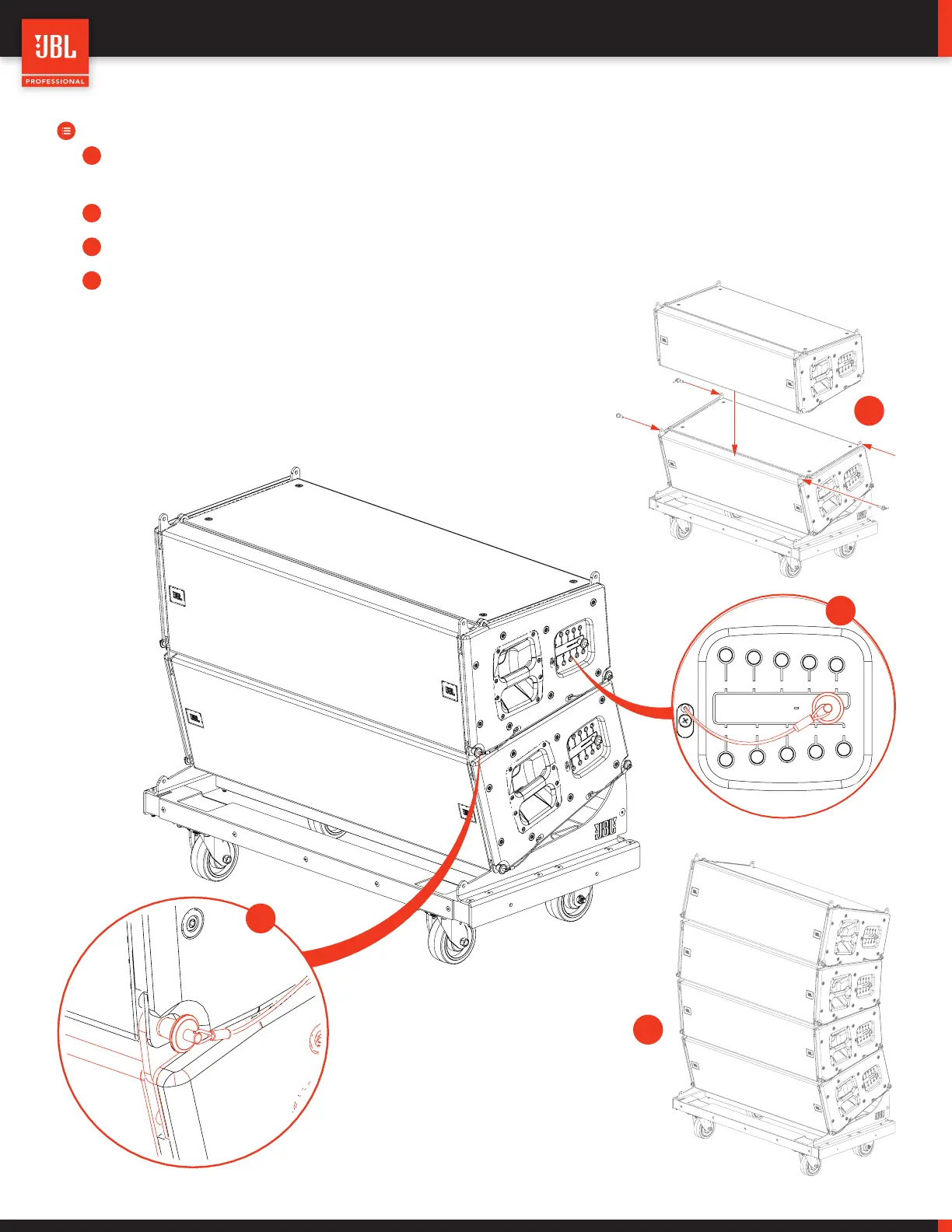

STEPS:
• Lower the next A12 cabinet on top of the first enclosure and make sure all four corners are aligned and the rigging arms are
engaged.
• Use the two quick release pins on each side of the A12 cabinet to secure it to the A12 below.
• Set the cabinet side angle to the 10-degree (STORAGE) position and make sure the red Locking lever is in the locked position.
• Repeat this process until all four cabinets are set on the VTX A12 VT.
2
1
2
3
3
1
4
4
