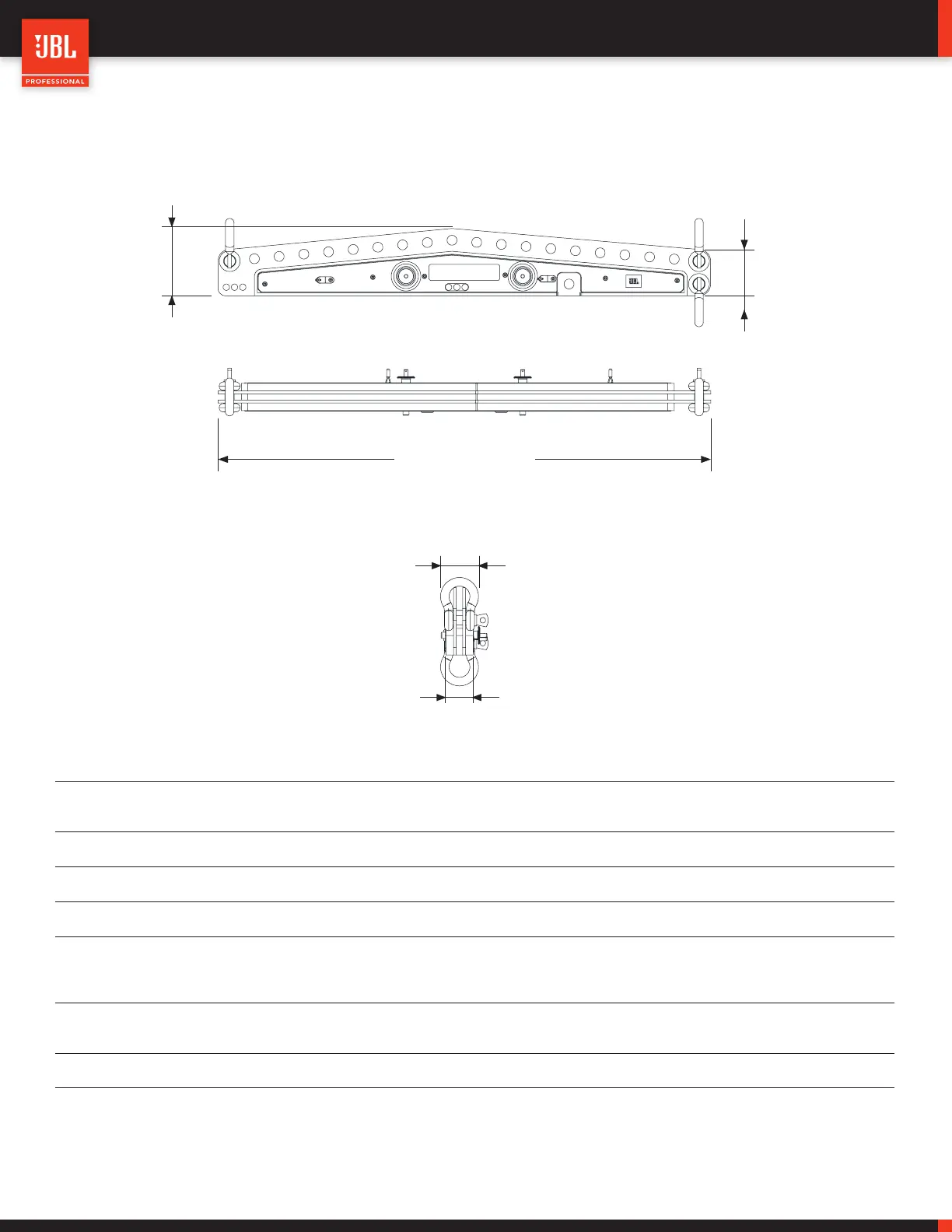

15.2 VTX A12 AF EB

90 mm (3.5 in)

138 mm (5.4 in)

1013 mm (39.8 in)

56 mm (2.2 in)

78 mm (3.0 in)

Construction:

High-grade steel with anti-corrosion coating

Plastic side covers

Finish:

Black powder coat

Compatible Shackle Size:

5/8-inch

Supported Lasers:

JBL VTX LZ, TEQ-SAS, Recline

Mechanical Limits

Maximum:

Safe Limit:

(24) VTX A12

(12) VTX A12

Dimensions (H x W x D)

138 mm x 1013 mm x 78 mm

(5.4 in x 39.8 in x 3.0 in)

Net Weight

13.6 kg (30 lbs)

Footnotes:

1: For arrays larger than the safe limit always use the JBL Line Array Calculator 3 to determine mechanical safety.

2: Refer to the 2D and 3D Customer Drawings for more detailed dimensions.

3: Array Frame, shackles and other rigging parts not included
