7 - 2
Electrical system (cont'd)

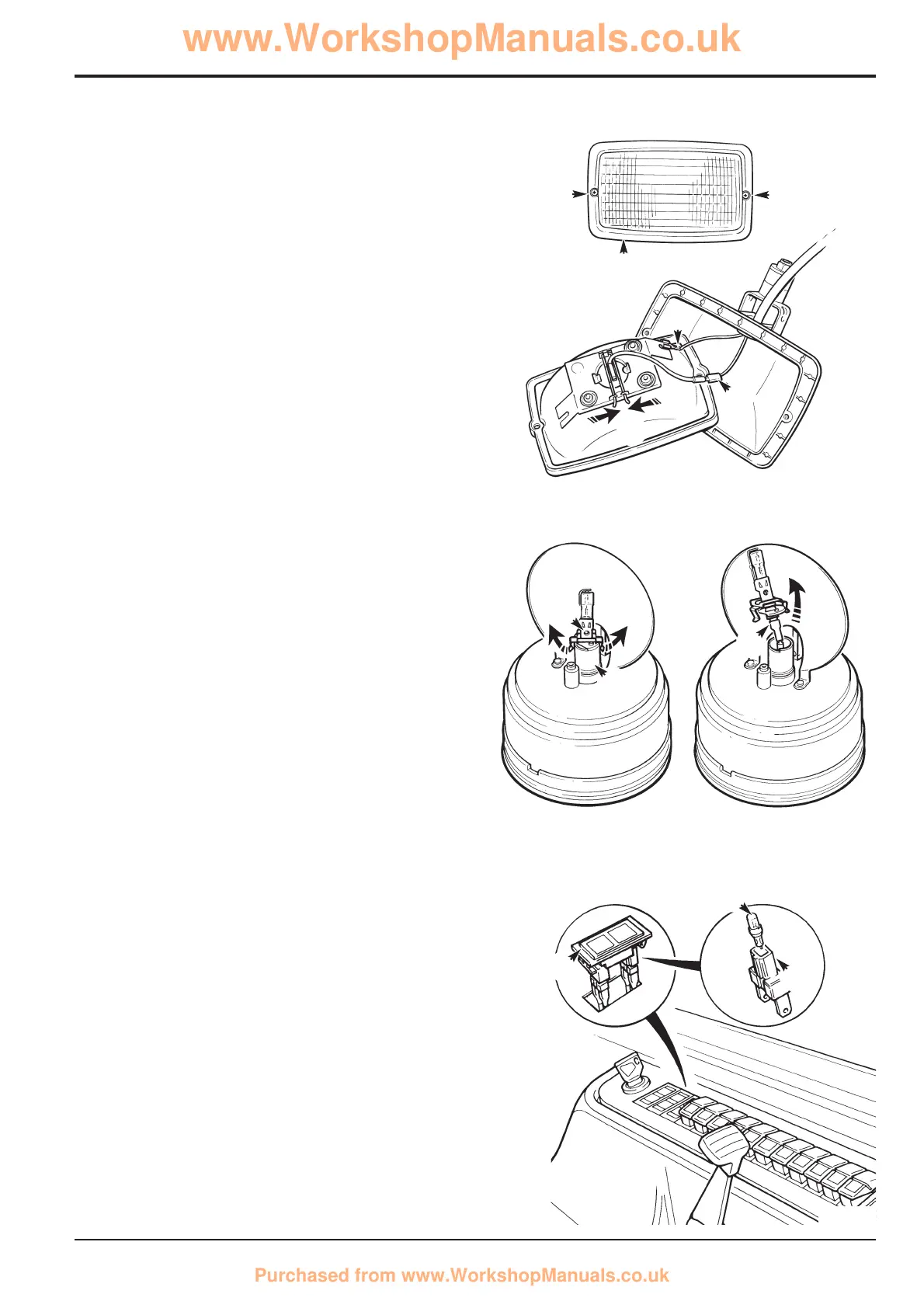

Changing the Light Bulbs
Worklight Bulb
1 Support the light unit B remove screws A.
2 Lift and turn light unit B to gain access to connectors C
and D.
3 Disconnect at C and D.
4 Remove the bulb by releasing clips E.
5 Do not touch the new bulb with bare fingers. Fit the
new bulb.
6 Reassemble the light unit in the reverse order.
Rotating Beacon Bulb
1 Remove the three screws holding the cover and remove
the cover.
2 Release spring clip H and ease the bulb from its holder
J.
3 Disconnect the bulb at K.
4 Do not touch the bulb with bare fingers. Fit the new
bulb. Make sure that the bulb is seated correctly and
the spring clip H is secure.
5 Reassemble the light unit in the reverse order.
Warning Lights
1 With a fine screwdriver ease the Warning Light N from
its socket in the control panel.
2 The bulb holder S can then be pulled from the back of
the Warning Light and the bulb will come with it.
3 The bulb R is a straight pull from the holder.
4 Fit the new bulb.
5 Re-assemble the Warning Light in the reverse order.
Section 3 Routine Maintenance
9803/8550
Section 3
7 - 2
Issue 2*
132930
133010
203832
A
B
A
C
D
E
K
J
H
N
S
R
*
