7 - 3
Section 3
Routine Maintenance
9803/8550
Section 3
7 - 3
Issue 1
Electrical system (cont'd)

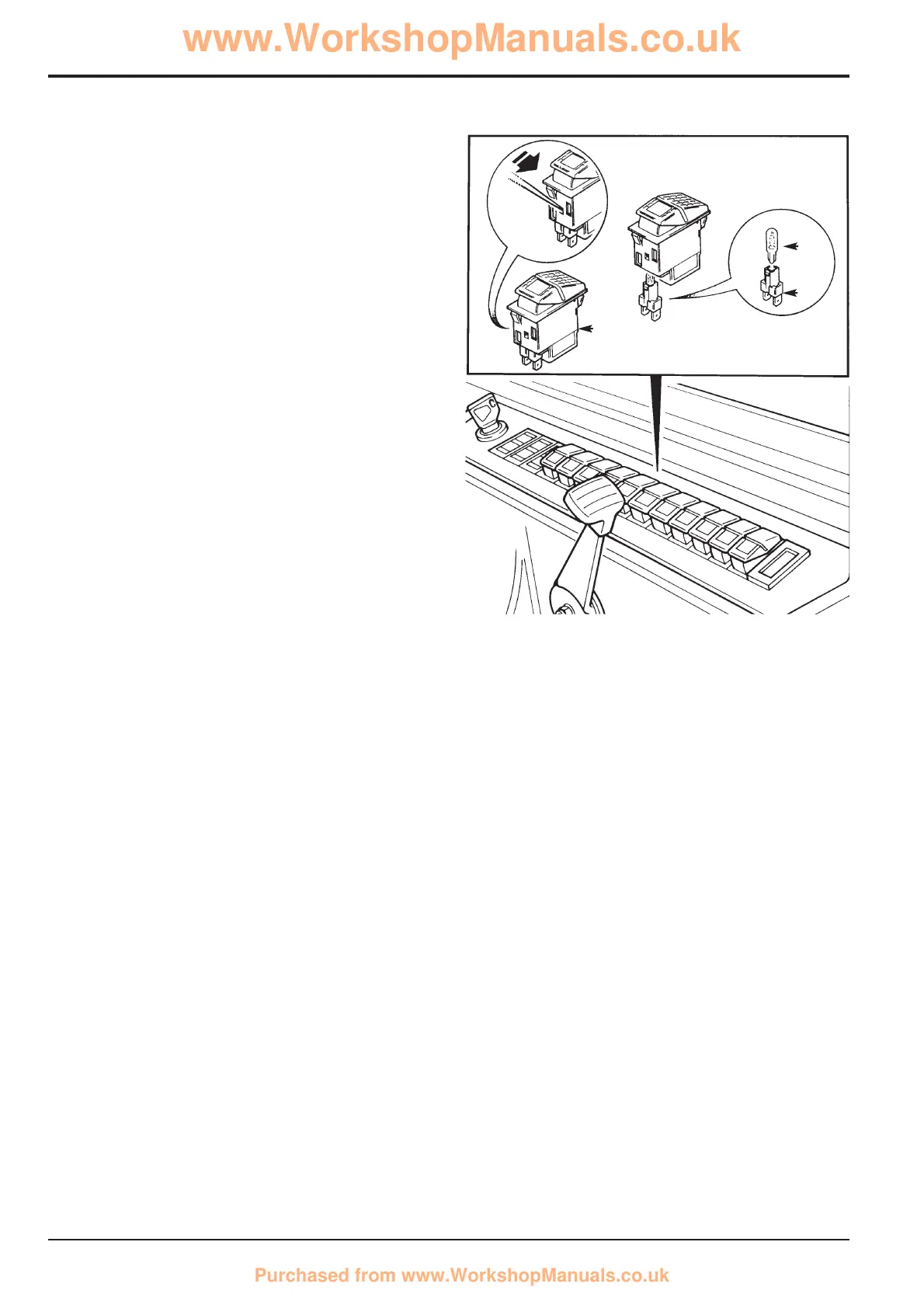

Changing the Light Bulbs
Switches
1
With a fine screwdriver ease the Switch
A
from its
socket in the control panel.
2
The bulb holder
B
can then be pulled from the back of
the Switch and the bulb will come with it.
3
The bulb
C
is a straight pull from the holder.
4
Fit the new bulb.
5
Re-assemble the Switch in the reverse order.
207341
A
C
B
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk
41
43
