Section E - Hydraulics
Valves
Control Valve
E-31 E-31
9803-9570-4
9 Place assembly on a suitable bench.
10 Pull off control rod knobs B.
11 Unscrew nuts C and lift cover assembly over the
control rods and away from the valve block. Collect
bolts D.
Replacement
Replacement is a reversal of the removal procedure.
Ensure all hoses and ports are clean and free from dirt.

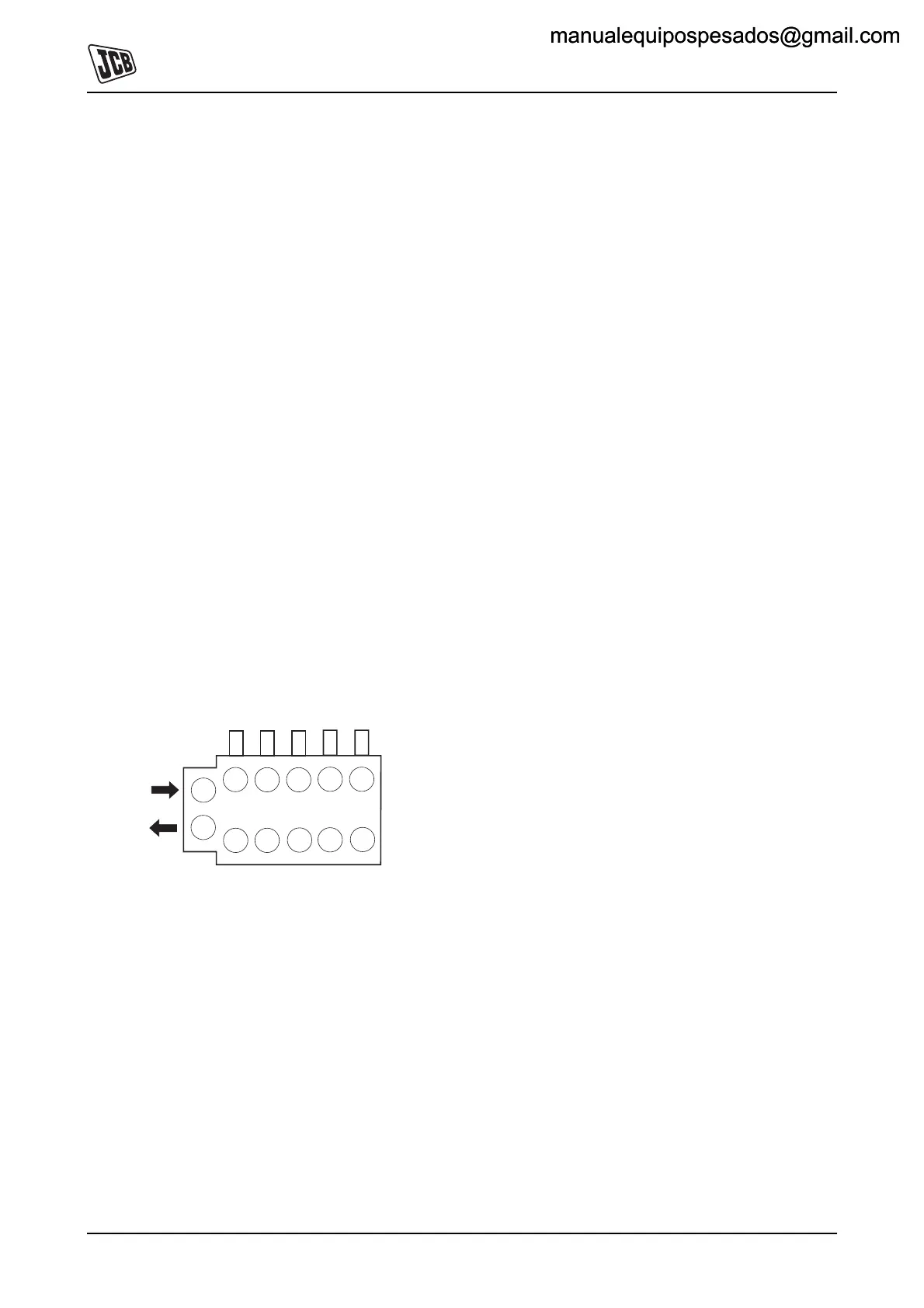

Hose Connections
Fig 3.
1A Tip ram rod side
1B Tip ram head side
2A Blank
2B Blank
3A RH track motor
3B RH track motor
4A Lift ram rod side
4B Lift ram head side
5A LH track motor
5B LH track motor
P Inlet
T Outlet to tank
P
T
12
3
45
A
B
A
B
A
B
A
B
A
B
