GETTING TO KNOW YOUR VEHICLE 85

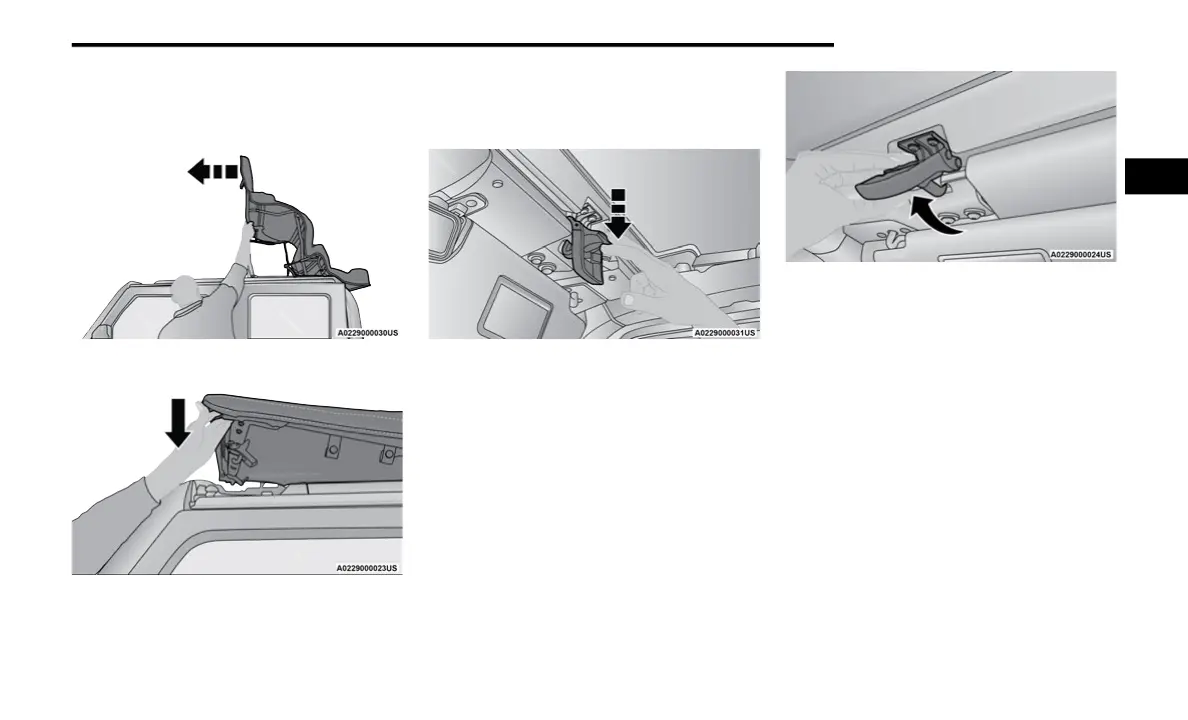

2. Using the side link, lift and push the soft top
toward the front of the vehicle, manually
guiding the top into the closed position.
Step Two
Step Two
3. From inside the vehicle, pull the handle on
t he header latch downward to engage the
hook into its receiver.
Step Three
4. Pull the handle back upward while
s
queezing the hook, locking the latch into
place.
Step Four
5. Repeat steps three and four on the other
s
ide.
Installing The Rear Window And Quarter
Panel Cover Assemblies
NOTE:
Both quarter panel cover assemblies and the
re
ar window must ALL be removed together, or
installed together.
2
