SECTION 3 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3121801 3-31
BEACON
LIGHT
ELEVATION
SWITCH
LEVELING
JACK
SWITCHES
HORN
FUEL
GAUGE
SENDER
GROUND
CONTROL
BOX
ALARM

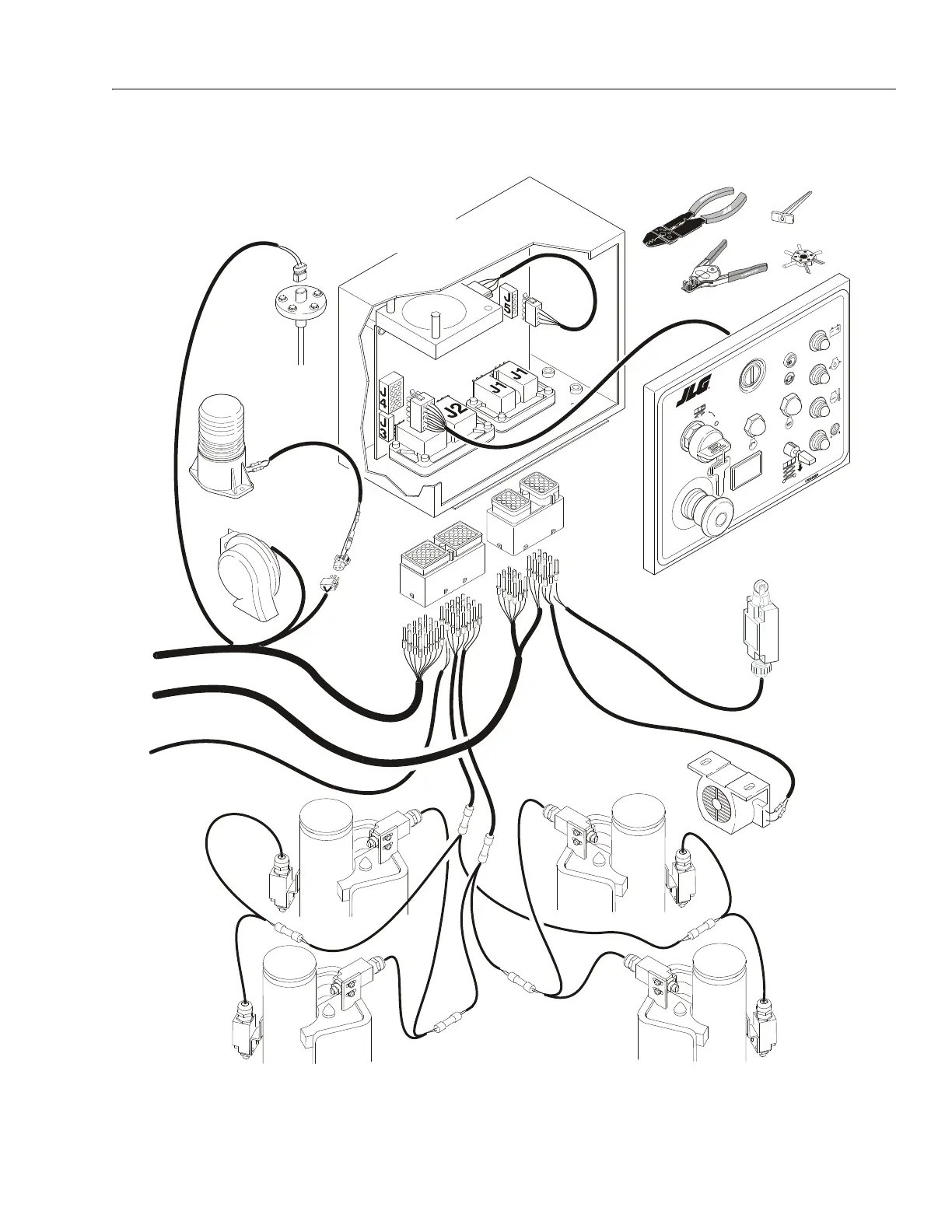

Figure 3-27. Electrical Componants Installation - Prior to S/N 141689 - Sheet 2
