SECTION 3 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3-32 3121801
MAI N
VALVE
PLATFORM
WORK
LIGHTS
PLATFORM
CONTROL
BOX
PISTON
PUMP
LIFT
CYLINDER
GENERATOR
TO
ENGI NE
COMPONENTS
TO
OVERLOAD
RECEPTACLE
AT P L AT F O R M
(DESIGN MAY VARY)
CI RCUI T
BREAKER
(CE SPEC ONLY)

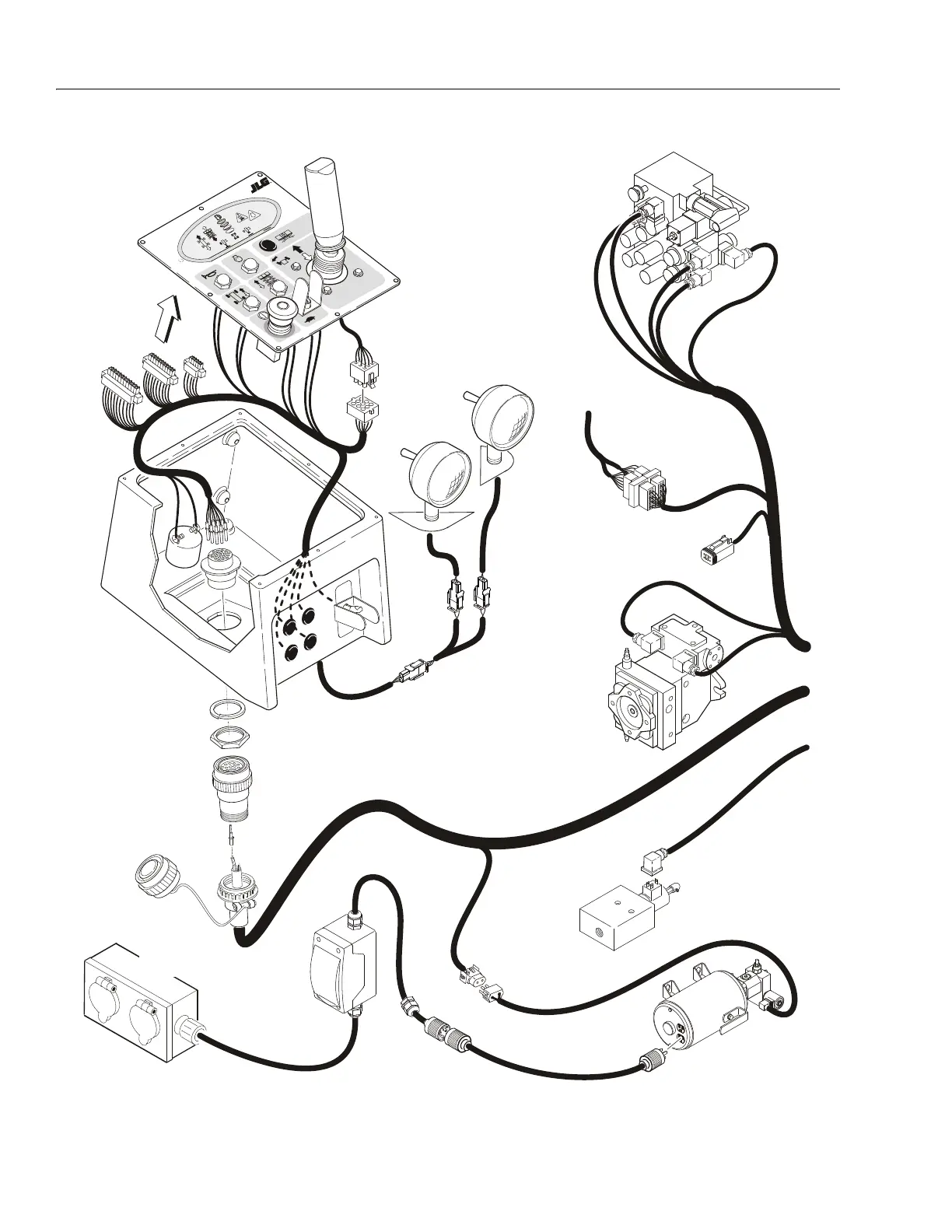

Figure 3-28. Electrical Componants Installation - S/N 141689 to Present - Sheet 1
