JLG 260MRT - Page 99

SECTION 3 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3121801 3-33
GROUND
CONTROL
BOX
BEACON
LI GHT
FUEL
GAUGE
SENDER
HORN/
ALARM
LEVELING
JACK
SWI TCHES
CONTROLLER
MODULE
IGN.
SPLICE
GROUND
SPLICE
ELEVATI ON
SWITCH
GROUND
SPLICE
RESI STOR
DIRECTI ONAL
VALVE
ANALYZ ER
TO
PROXIMITY
SWITCH

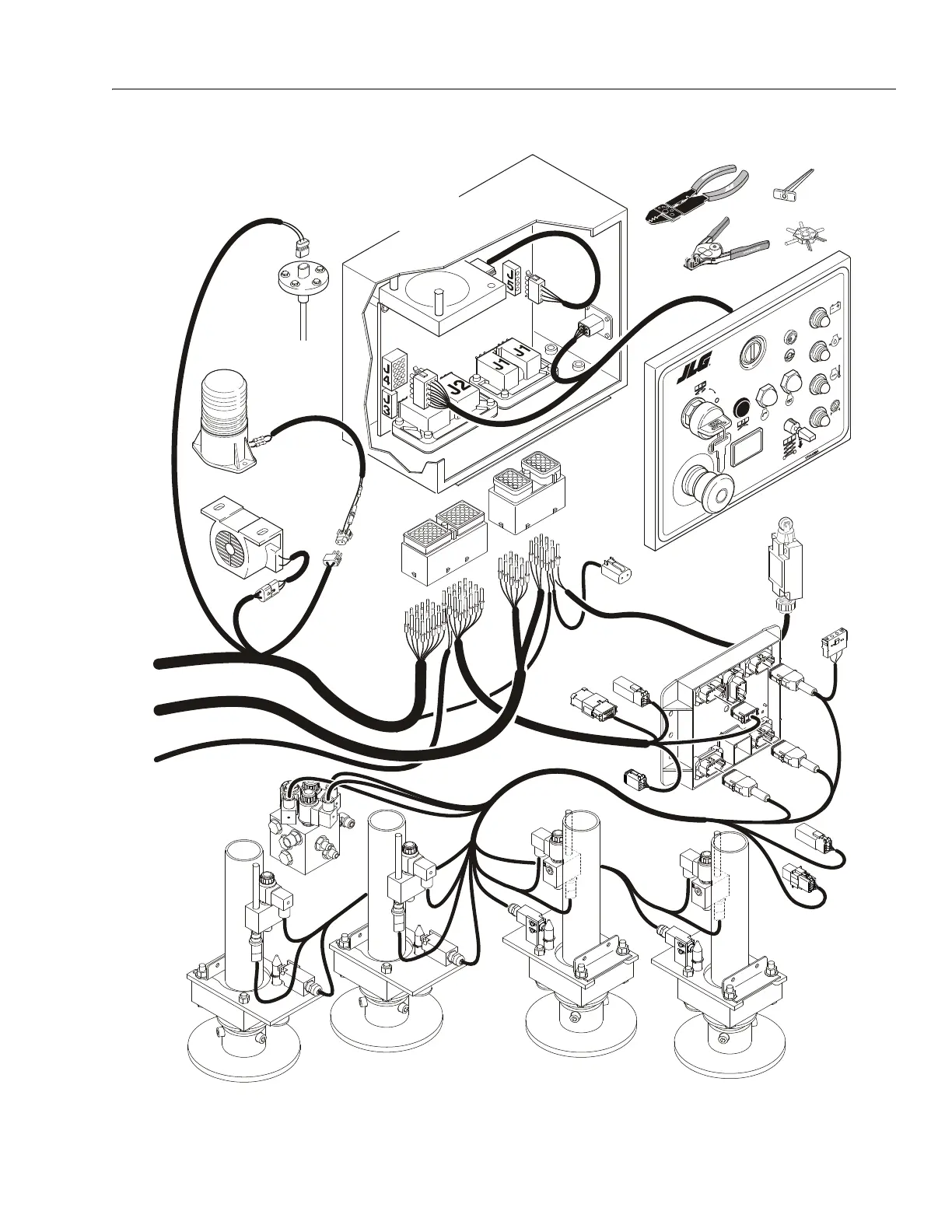

Figure 3-29. Electrical Componants Installation - S/N 141689 to Present - Sheet 2
