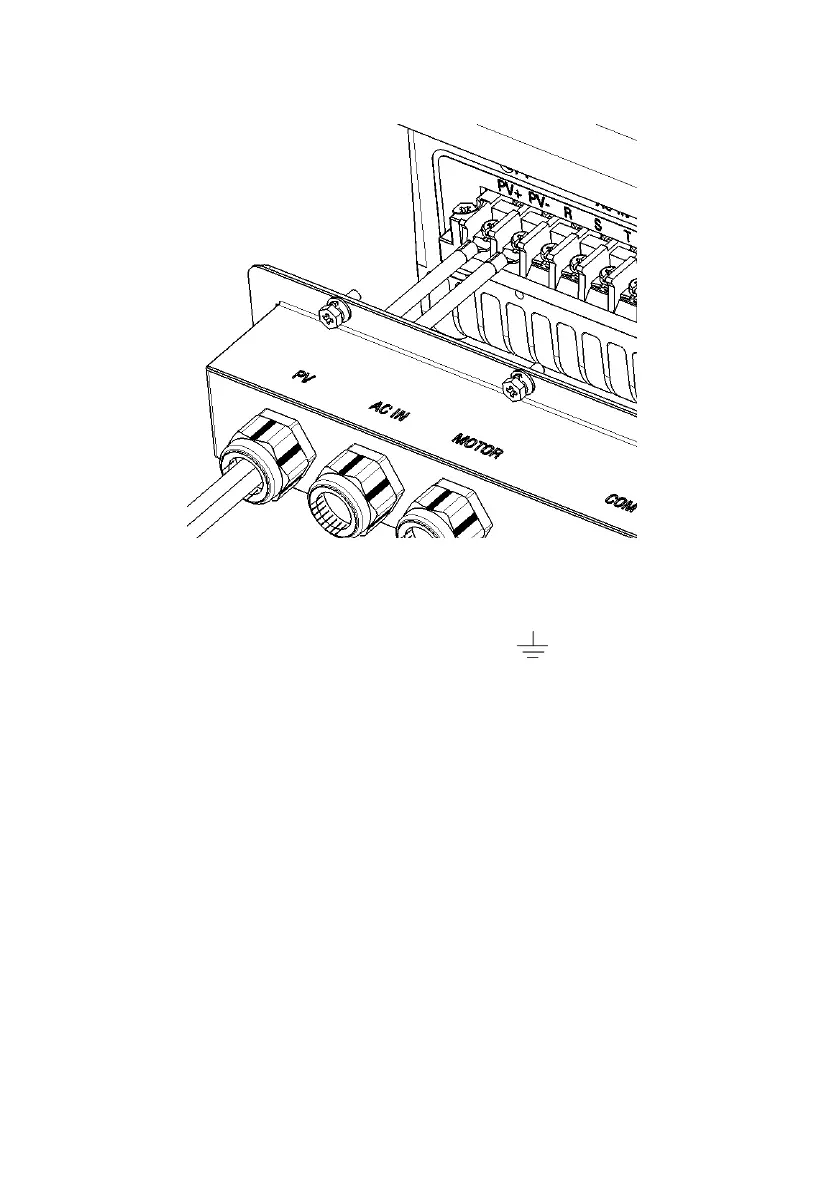

3.5 Inverter grounding
Make sure the reliable connection between ground terminal of Inverter
and the earth!
3.6 Water Level Sensor Connection
3.6.1 Water level sensor interface define
Water level sensor connector pins in inverter panel port are defined are shown
below:
