Notice！
Photos are for reference only, please adhere to the original product!

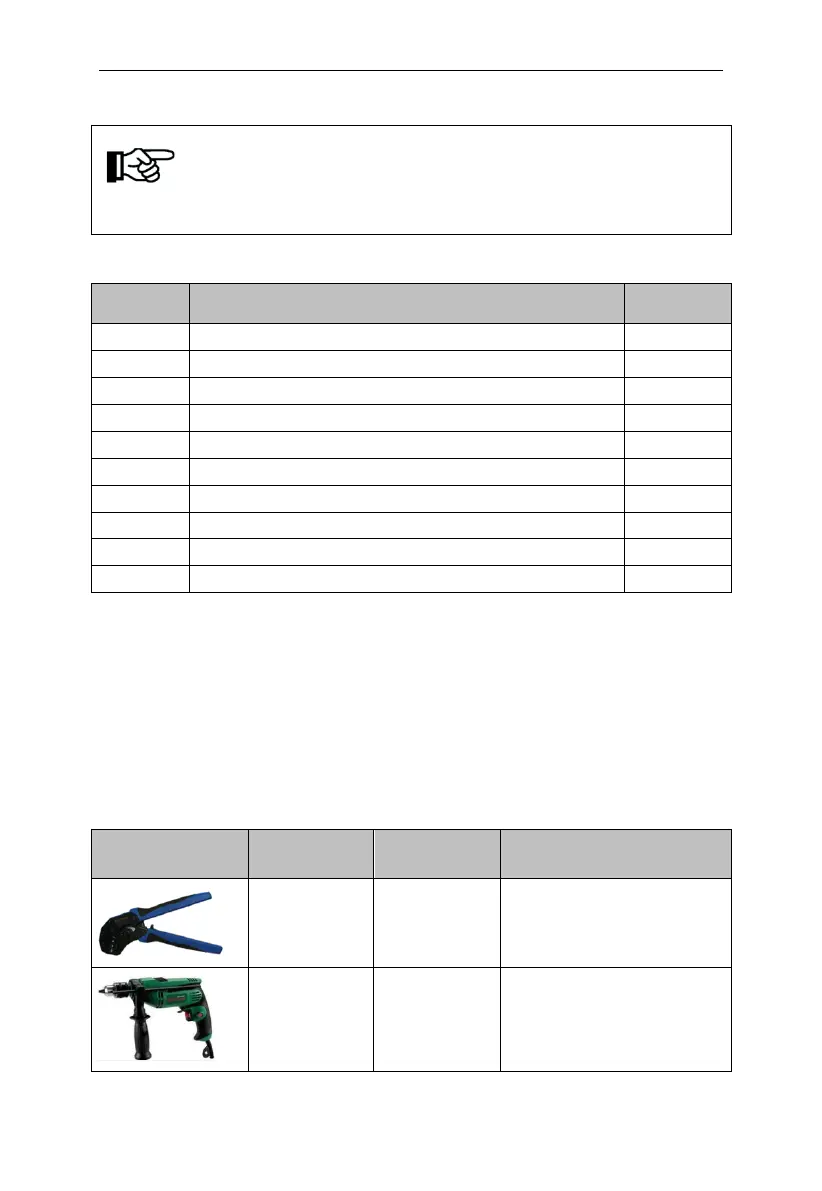

Table3-1 Inverter and fittings table
No.
Description
Status
1
Inverter model
Standard
2
Quick installation instruction
Standard
3
Certification
Standard
4
Expansion Bolt
Standard
5
Terminal block
Standard
6
Hanging board
Standard
7
Terminals
Optiona
8
Water level sensor
Optiona
9
GPRS_Device
Optiona
10
RS485 - RS232 Converter
Optiona
13 Installation Procedure
13.1 Prepare Installation Tools
The following tools will be needed during inverter installation and wire
connection. You also can choose the right tools according to your own
experience.
Table4-1 Installation tools list
Sketch map
Name
Recommend
specification
Function
Wire crimpers
M2.5~M8
For crimping of cold
terminals.
Electric drill
Ф6
Used for inverter
installation plate fixed
hole drilling.
