Jntech JNP11KH-V4 - Installation Procedure; Prepare Installation Tools

·24·
Table3-1 Inverter and fittings table
No.
Description
Status
1
Solar Pump Inverter
Standard
2
Fixing rail
Standard
3
Water level sensor B
Optiona
4
Cold pressing terminal (SC4-5)
Standard
5
expansion bolt
Standard
6
certificate of inspection
Standard
7
specification
Standard
8
container loading list
Standard
9
Water level sensor A
Optional
10
pressure sensor
Optiona
11
Signal terminal row
Standard
12
Cold pressing terminal (SC35-8)
Standard
8 Installation Procedure
8.1 Prepare Installation Tools
The following tools will be needed during inverter installation and wire
connection. You also can choose the right tools according to your own
experience.

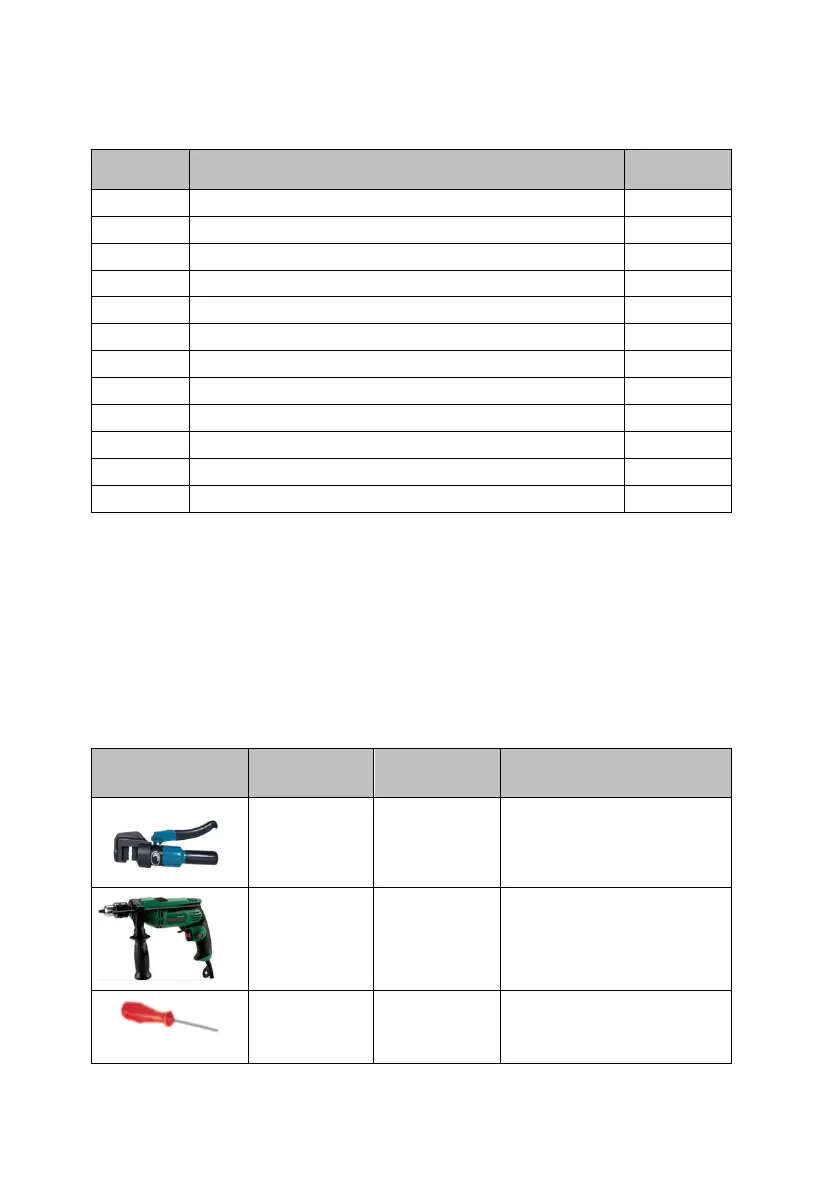

Table4-1 Installation tools list
Sketch map
Name
Recommend
specification
Function
hydraulic
tong
10~70mm²
For crimping of cold
terminals.
Electric drill
Ф9
Used for inverter
installation plate fixed
hole drilling.
Straight
screwdriver
Ф3
For the installation of
communication
connecting wires.
