·31·

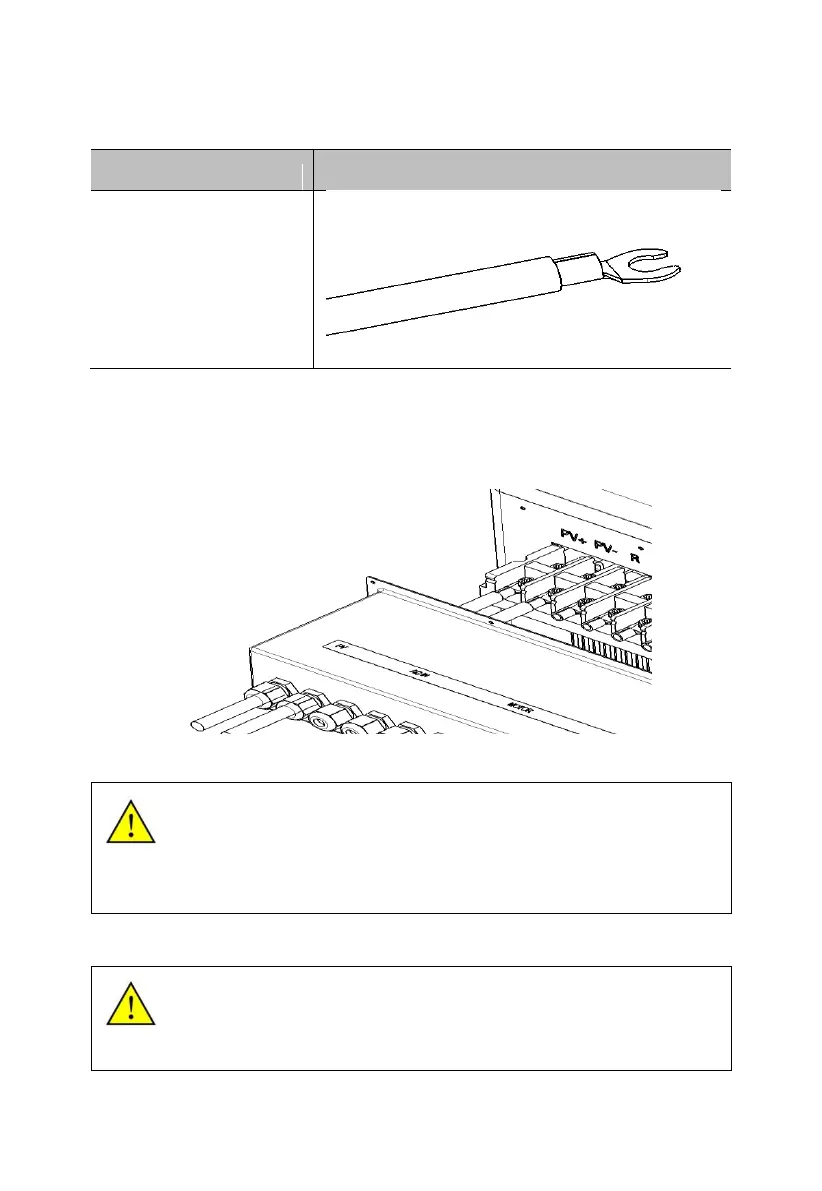

Step1: Please connect the wire of DC according to the following steps:
7. Connect DC wire and
cold terminal (SC35-8）
firmly by crimping plier.
Step2: Through the PV waterproof terminal on the terminal cover, fix the DC
wire (PV +, PV -) on the terminal, pay attention to the positive and negative
poles shouldn’t be connected reversely, and ensure that the circuit breaker
at the DC side of the system is in the off state.
Figure6-4 PV side electrical connection
Warning！
Make sure the Positive and Negative poles connection of PV array and
Inverter are correct!
9.4 AC Side Electrical Connection
Notice！
It’s forbidden to connect several inverters in parallel to one set of pump!
