10.2 LCD Panel Operating Instructions

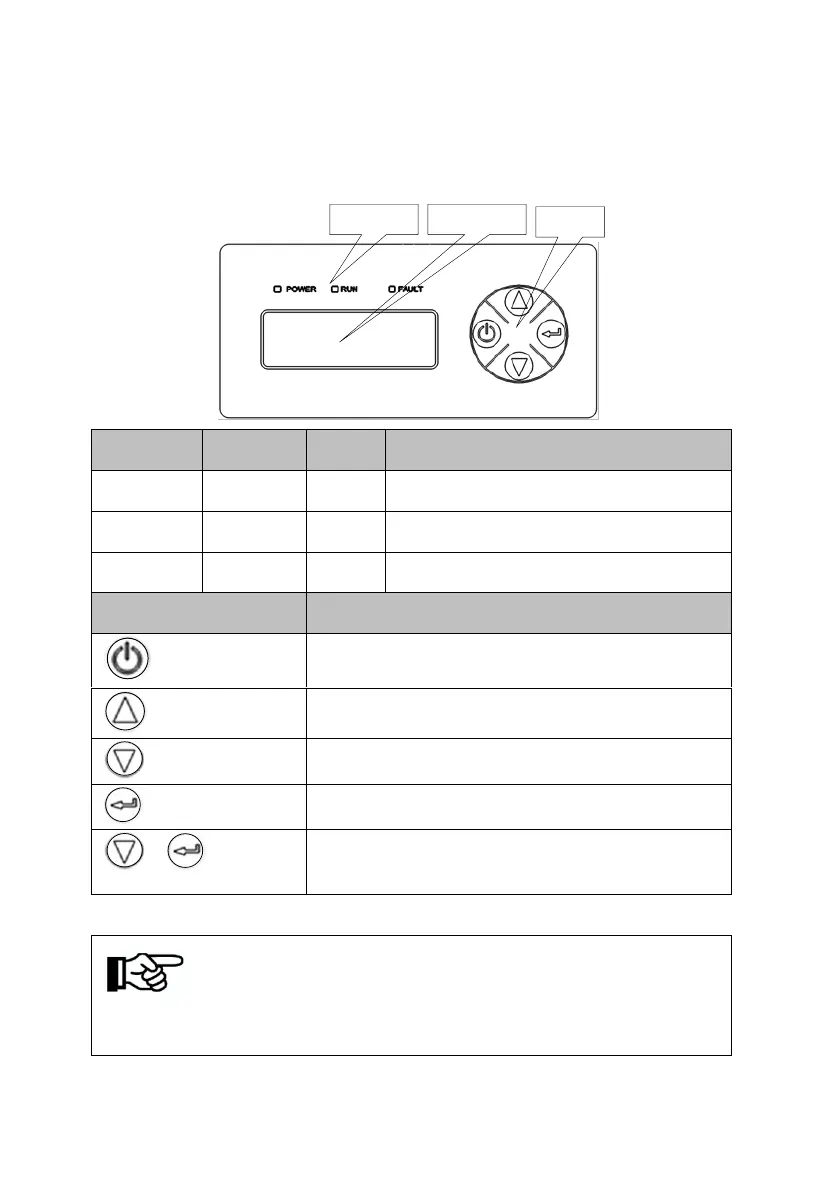

Inverter LCD Display
Buttons
LCD displayLED lights
LED
Indicator
Name
Color
Instructions
POWER
Power light
Green
Light on When power on
RUN
Running
light
Green
Light on under normal operation
FAULT
Faulty light
Red
Light on when error occur, off when error be
cleared
Buttons
Functions
“ON/OFF”
Press for 4s to get it started.
“UP”
Page up or increase parameter data.
“DOWN”
Page down or decrease parameter data.
“ENTER”
To choose and confirm.
+
“DOWN+ENTER”
Return to main interface.
Notice！
When inverter power on, LCD screen background is lighted, and after 30s’ normal
running, the background light turns off.
