MNP11M01GB06 May 2007- Rev.4 Page: 18 de 40
FIRST RELOAD:

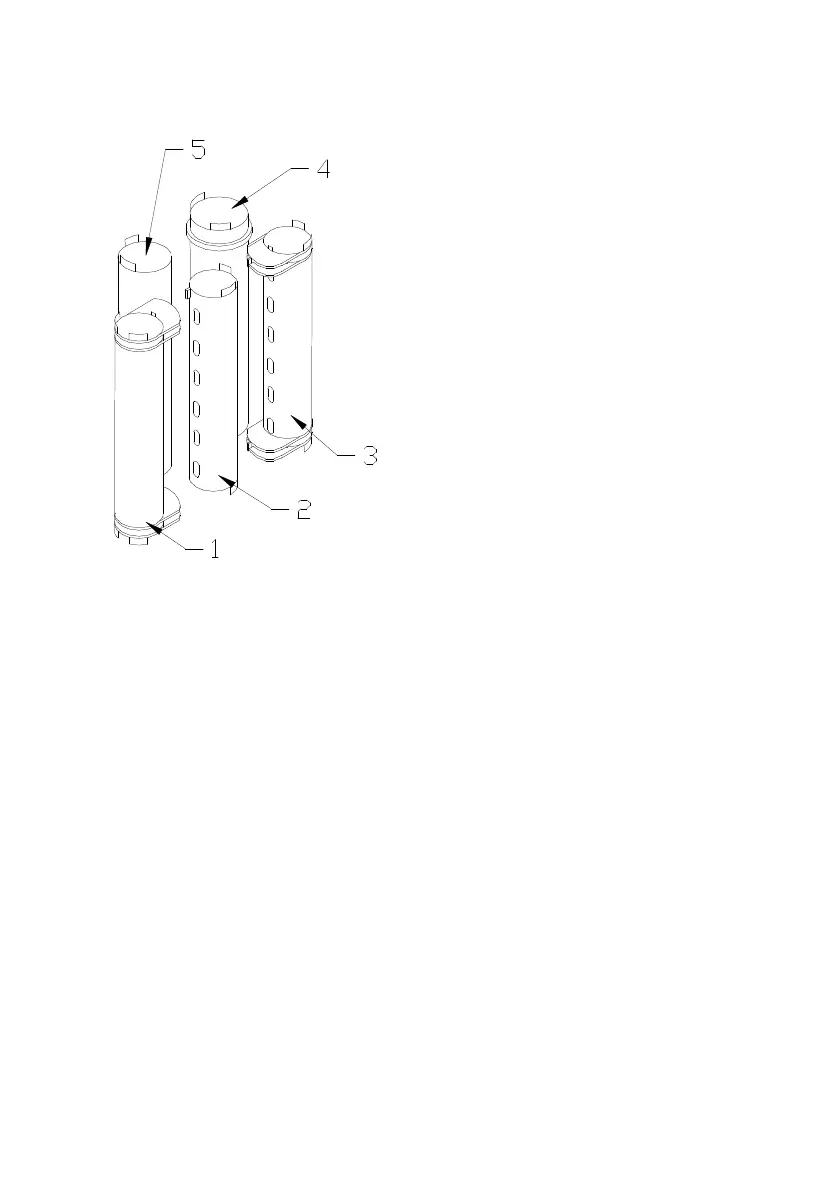

If all the tubes are totally empty, when this
address is reached the refund trolley will be
placed in the middle left position and the only
coins accepted will be those programmed to
the 2,3 and 4 tubes. Each time that the count
of coins in some of these tubes amounts to 3
coins, the slide will move removing the claw of
the tube.
If when the slide is moving the tubes 2,3 and 4
have at least one coin, the slide will be placed
in a middle right position and the compact will
then accept coins programmed in the tubes 1
and 5, moving the trolley again when any of
this tubes reach a value of 3 coins.
It’s strongly recommended to reload through
this address when one tube is totally empty at
least the 3 first coins of the tube. If you try to
fill it up when the compact is in normal sale
mode (or when filling through the VMC
options) you can cause a jam.
Do not manually reload the tubes !!!
“__26” UNLOADING FROM CHANGERS.
If the display is showing “__26” and we press “3” the display will show “----”. Pressing
“2” the trolley will unload a coin from each tube.
If we are in the direction indicative and we press “2” we can see the next fields in this
address:
0_26: Will program the possibility to reach address 26 directly outside of the program
mode by pressing “2” “3” or “4”. If this function isn’t desired this option must be
programmed to 0.
On programming 2 in this option will be possible to unload coins from the three first
tubes directly in sale mode by pressing “2” “3” or “4”:
Key 2 3 4
Tube 1 2 3
If address 0_26 is programmed to 3 it works like programmed to 1 but in these case
the contest of this field can´t be changed if it isn´t in the second level of programming.
If the compact is running under the MDB protocol on programming 3 in this option the
compact will omit the inhibition orders from the VMC. This allows us to unload the
tubes at any moment. The compact will no give information to the VMC about the
unloading of the tubes.
1_26: Consult and unload coins from tube 1. Pressing “3” the compact will show the
number of coins in the tube. Each time “2” is pressed a coin will be dispensed.
.....
5_26: Consult and unload coins from tube 3.
