Cleaning of the validator.
Periodical cleaning of the walls and ramps of the validator, where the coins circulate,
with a rag or damp cloth is recommended.
Coin jams and tube replacement:
In
order to disassemble the compact follow the next steps:
- Unload completely the coins in the tubes.
- Disengage the front protector (1).
- Unscrew the coin deflector (2).
- Take off the coin validator lifting the clip placed on the left of the validator (3).
- Unscrew the three screws placed in the validator clip on the sides of the steel U.

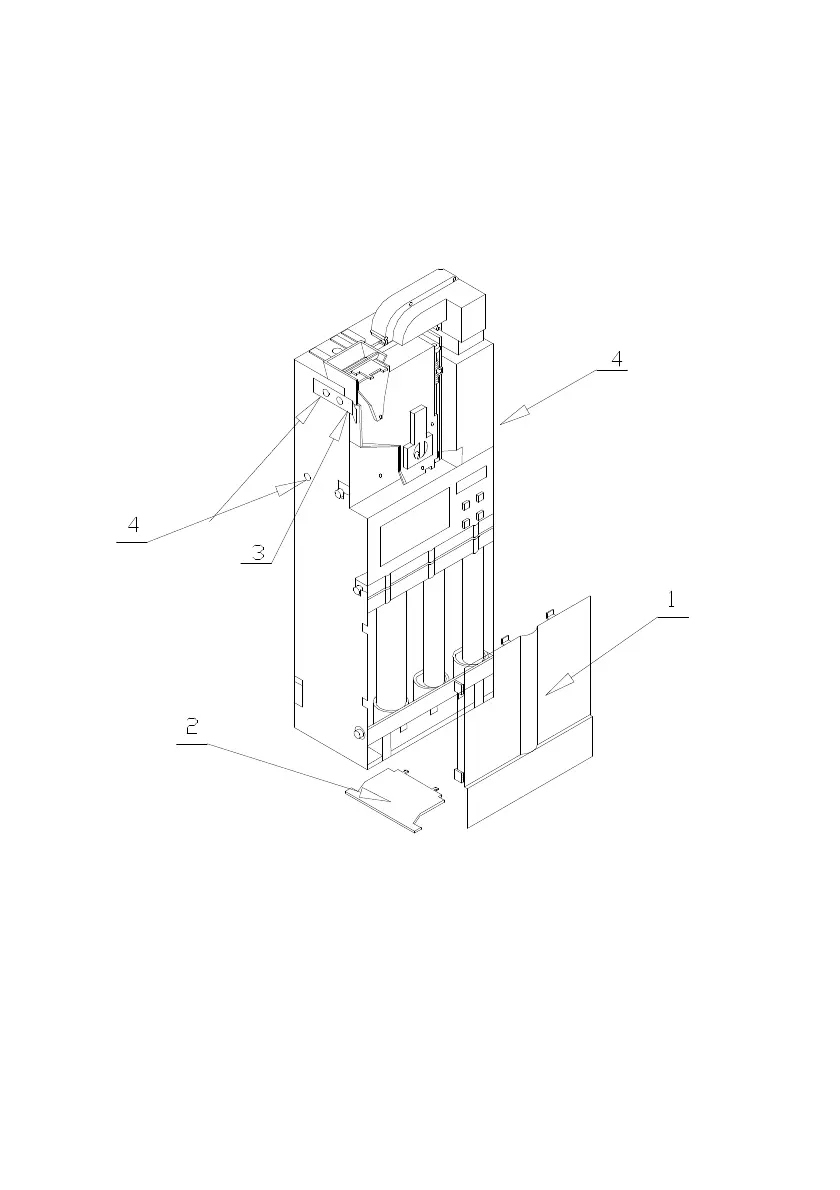

When you have done this, put the compact laying on a horizontal surface and then lift
up the steel U as indicated on the figure. Then move the separator and display block
laterally to reach the tubes.
