Jofemar J-2000 - Connections for the Executive Protocol

MNP11M01GB06 May 2007- Rev.4 Page: 31 de 40
Connections for the executive protocol
MOLEX 1991-15P Connector.
Nº Colour Function
1 Brown Active.
2 Blue Neutral.
MOLEX 1625-9P Connector.
Nº Colour Function
1 Red TX1
2 Green TX2
3 White RX1
4 Grey RX2
9 Grey Shield

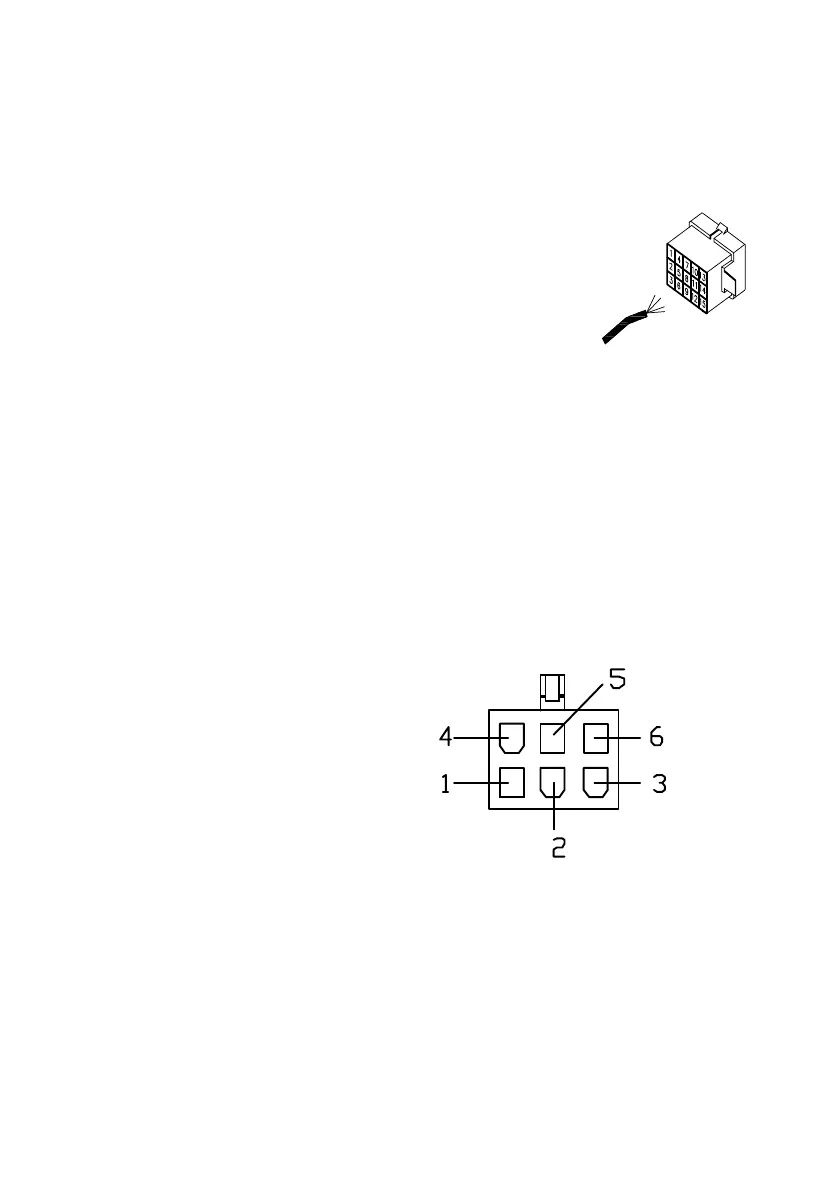

MDB connections:
The connections between the J-2000 compact and the VMC is made through a
MOLEX 39-01-2060 connector.
The connections are
N1 Colour Function
1 Blue Vcc
2 Black Ground
3 — n.c.
4 Pink Master RXD
5 Green Master TXD
6 Violet Common
RXD/TXD
FRONT VIEW
