3.- INTRODUCTION TO MODEL J-2000.
The J-2000 validation group is an integrated system made up of an electronic coin
validator and a refund system for automatic vending machines with MDB or Executive
protocol. It consists of a electronic coin validator model T10, a 5 routes coin separator
and five self loading change tubes.
Its water protection system allows it to run in a hard environment.
This compact has also the possibility to dump the count data to a serial printer or
reprogram some of its options with the help of a PC computer.

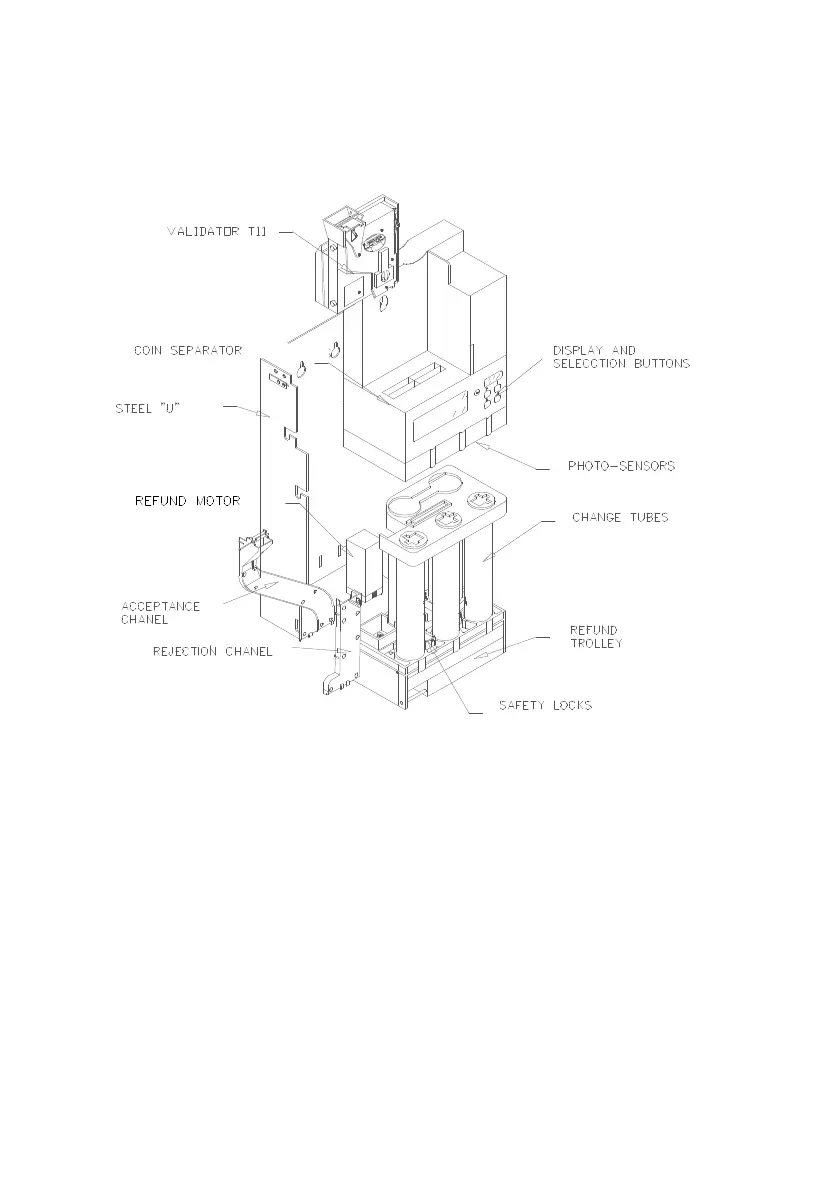

T10 Validator.
The T10 is an electronic validator that can identify up to 15 coins or tokens. It has a
built in separating system with a coil that rejects or accepts the coins. It is powered by
12VDC through a connector to the control board.
Coin separator
This subsystem permits the routing of accepted coins by the T10 validator to reload
the five change tubes or the coin deposit. It has photo-sensors in the bottom to make
coin acceptance faster and detect coin jams in the top of change tubes.
