Operator’s Manual QUADRIGA 1000/BB
4.1-2
4.1-3
4.1-6
4.1-7
1
4
10

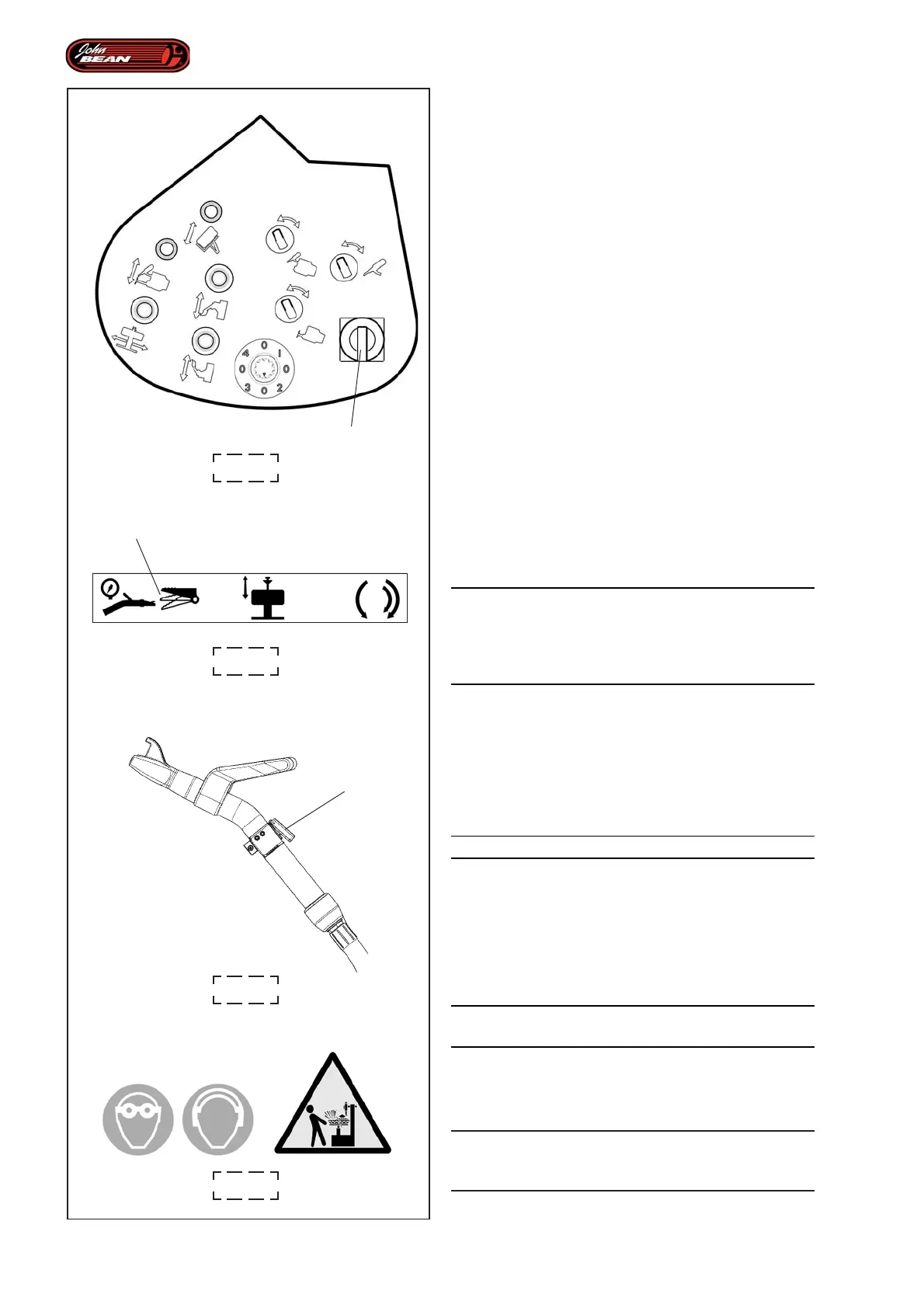

4.3.6 Main ON/OFF Switch
The Main ON/OFF Switch (10, Fig.4.1-2) controls the
electrical power supply to the Tire Changer.
Turn ON:
• Turn the main switch (10, Fig.4.1-2) clockwise to
the “I” position. The tire changer will come on and
the sound of the Hydraulic Control Unit motor can
be heard.
Turn OFF:
• Turn the main switch (10, Fig.4.1-2) anti-clockwise
to the “0” position. The tire changer will stop and
the User Interface display will switch off.
Note: We suggest the operator turns the Main
Switch OFF every time they finish their
work shift.
4.3.7 Tubeless Beading System
WARNING: WHEN OPERATING THE BEADING
DEVICE IT IS MANDATORY TO WEAR EAR
PROTECTORS AND SAFETY GLASSES TO
PREVENT CONTAMINATION FROM NOISE, DUST
AND CHIPS BLOWN BY THE AIR JET.
Figure 4.1-3
Press the pedal (2 Fig.4.1-3) partially with your RIGHT
foot (1 Fig.4.1-3); the air exits from the end of the hose
previously connected to the tire valve.
Figure 4.1-7
WARNING: DANGER OF TIRE EXPLOSION
Press the key on the Tubeless Beading Nozzle (4,
Fig.4.1-6), then press the pedal all the way down
decisively (1, Fig.4.1-3); a high pressure air jet exits
the Tubeless Beading device.
WARNING: HOLD THE TUBELESS BEADING NOZZLE
FIRMLY.
Note: Air simultaneously continues to exit the hose
connected to the tire.
WARNING:
ONCE BEADING IS COMPLETE, IMMEDIATELY
STOP INTRODUCING AIR.
