QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (MAR 12)
Page 16
NOTE 1: The triangle symbol ( ) denotes Pin 1 on connectors. Refer to the chart on the following page for jumper settings.
NOTE 2: Do NOT remove the CN4 jumper. Removal of this jumper will cause the processor to not power up.
NOTE 3: Although the Q5 board is the main controller, most of customer connections will be to the Interface board, as shown
later.
CN1
Ethernet
Connector
CN_POWER1
Power
Connector
USB
Ports
Ethernet
LED’s
JLVDS3
JLVDS2
CMOS1
CN3
INVERTER1
Inverter
Connector
Flash Card
located under
the board
here
CN1000
POWER
LED’s
DIMM1
USB
Ports
LVDS1
Display
Connector
COM2
RS-422/
485
COM1
RS-422/
485
COM4
RS-485
COM3
RS-485
CRT1
Video
Monitor
BH1
Battery
FUSE

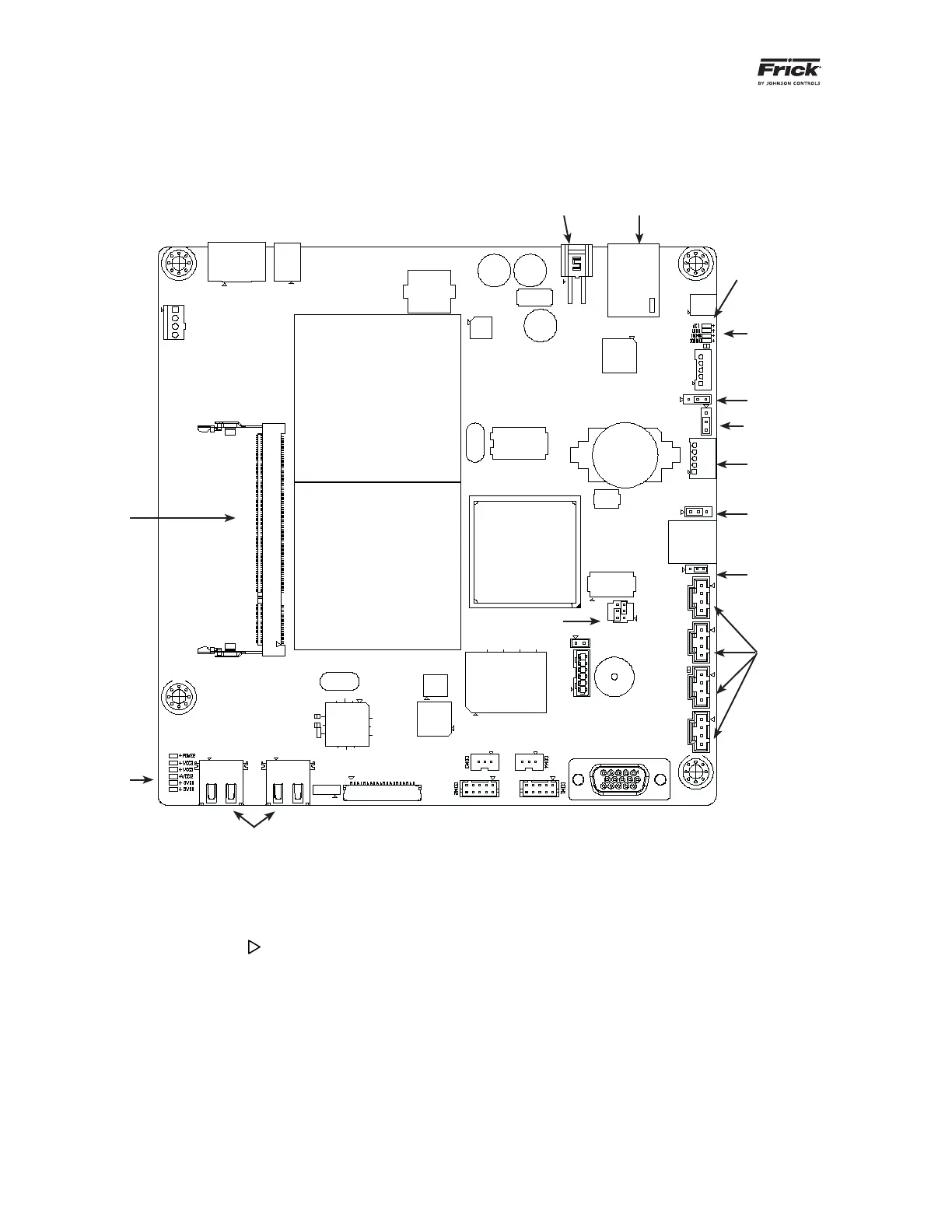

Q5 BOARD PICTORIAL
