Johnson Controls FRICK QUANTUM HD Maintenance

QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (MAR 12)
Page 76

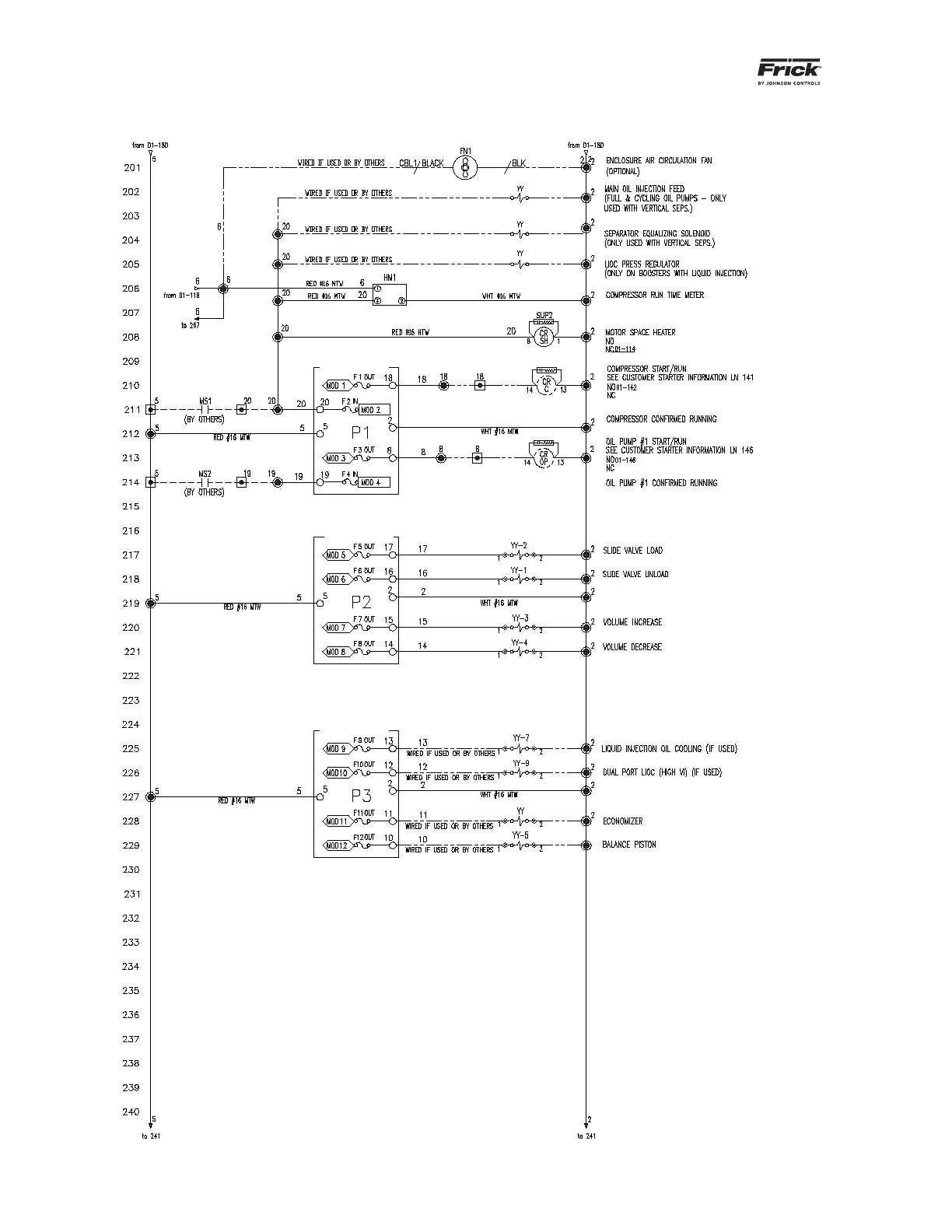

WIRING DIAGRAM – RWFII WITH CAPACITY SLIDE TRANSMITTER (Sheet 3 of 6)
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
DIG BD # 1 - P1
DIG BD # 1 - P2
DIG BD # 1 - P3
