Johnson Controls FRICK QUANTUM HD Maintenance

QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (MAR 12)
Page 78

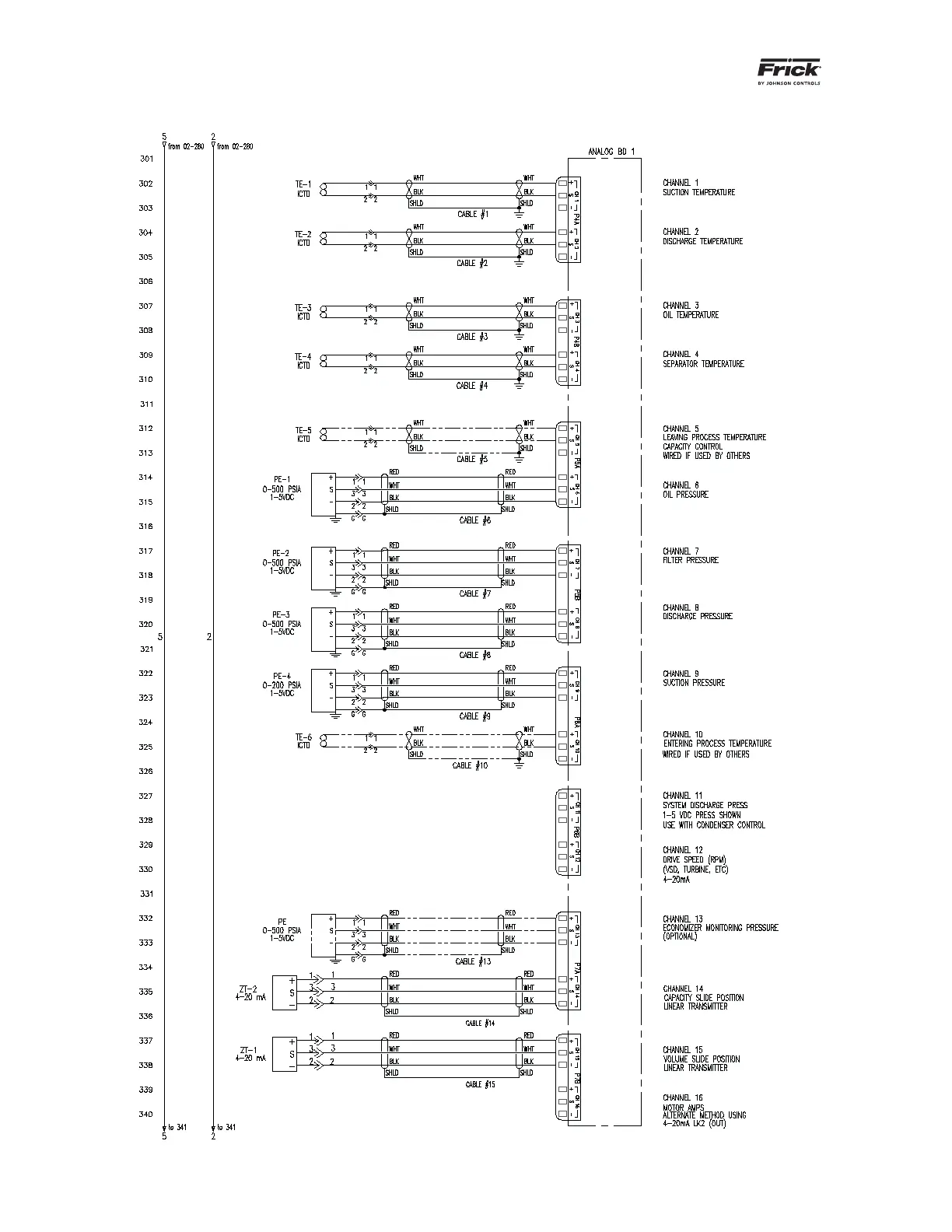

WIRING DIAGRAM – RWFII WITH CAPACITY SLIDE TRANSMITTER (Sheet 5 of 6)
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.

Johnson Controls FRICK QUANTUM HD Specifications

General

Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Operating System	Linux
Display	Touchscreen LCD
Ethernet	10/100 Mbps
Serial Ports	2 x RS-485
USB Ports	2 x USB 2.0
Power Supply	24 VDC
Operating Temperature	0°C to 50°C
Enclosure	NEMA 4X
