QUANTUM™ HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (MAR 12)
Page 94

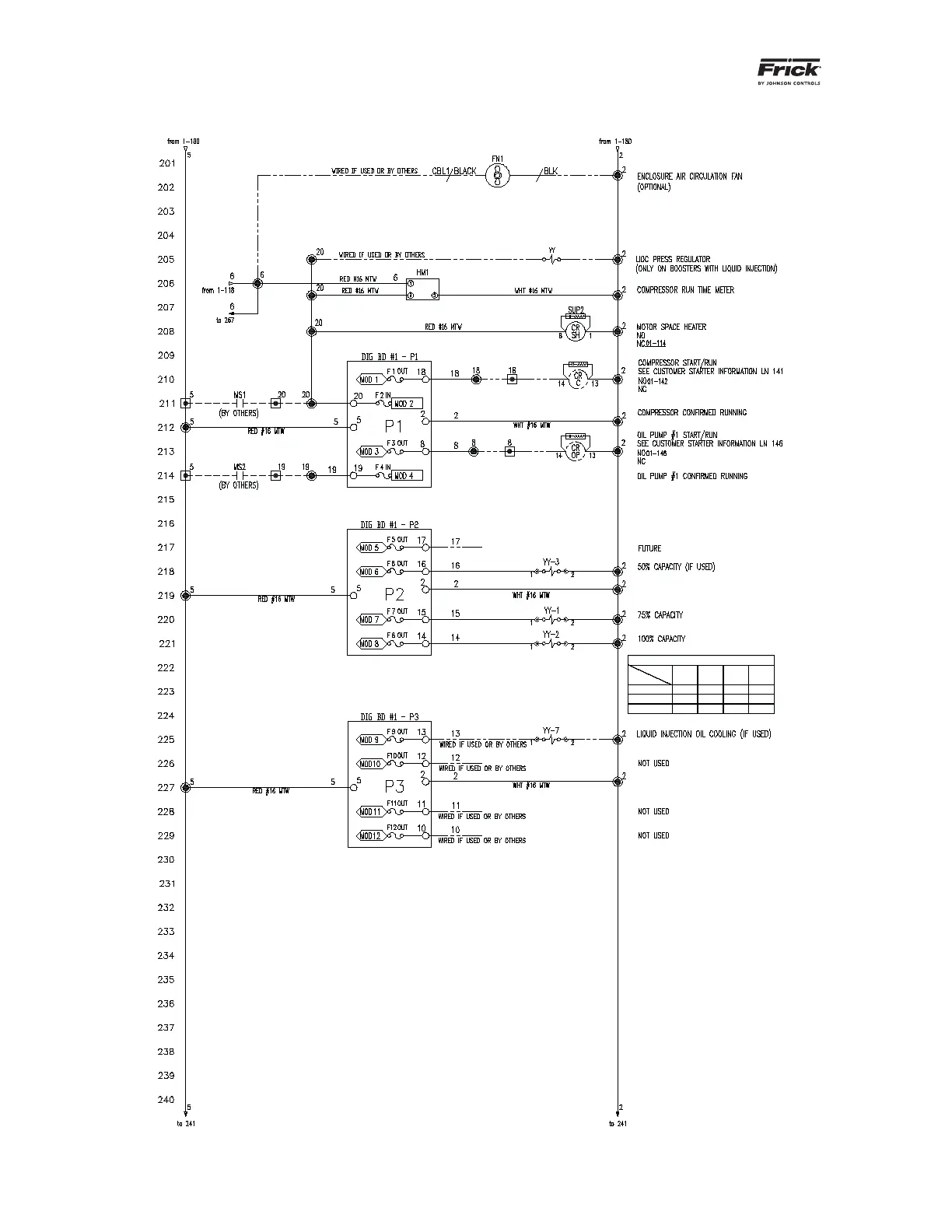

WIRING DIAGRAM – RDB (Sheet 3 of 6)
50 75 100
* 50% OFF ON ON ON
75% OFF OFF ON ON
100% OFF OFF OFF ON
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
To Next Page
