Johnson Controls Hx 3 S1-THXU430W User Manual

5407934-UIM-C-1119
Johnson Controls Ducted Systems 17

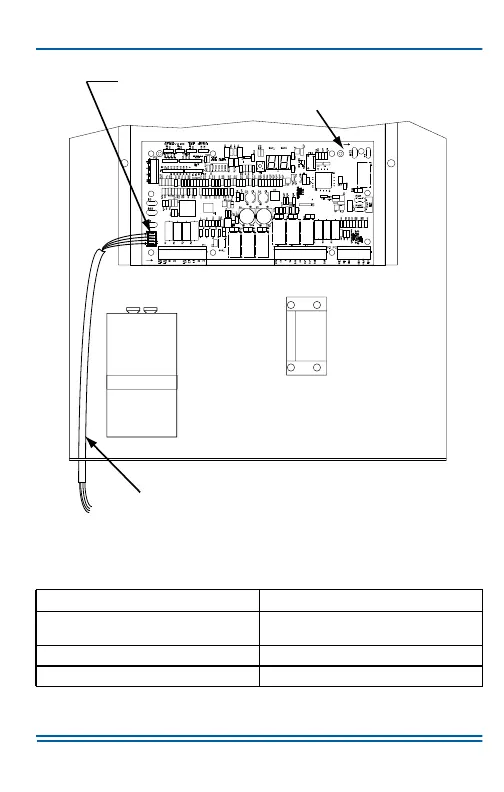

FIGURE 11: 2-Stage AC/Heat Pump - Outdoor Control Housing
TABLE 3:
Outdoor Jumper Settings
Unit Control Jumpers That Must Be Set
Heat Pump
Fossil Fuel: Set this jumper to ON if
using a gas furnace.
Air Conditioner No jumpers to set
Variable Capacity AC/HP No jumpers to set
COMMUNICATIONS PORT
COMMUNICATIONS HARNESS
(SHOWN THROUGH CONTROL BOX)
CONTROL BOARD
A0950-001
