5407934-UIM-C-1119
24 Johnson Controls Ducted Systems

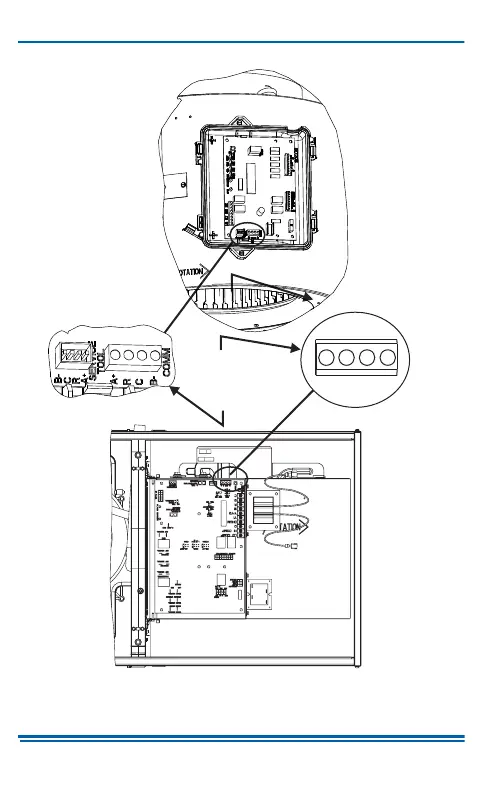

FIGURE 16: Indoor Screw Terminal Location
MODULATING
FURNACE COMMUNICATING PORT
AIR HANDLER
COMMUNICATING PORT
(AVC/MVC/AVV)
SCREW
TERMINAL
B-
GND
R
A+
A1247-001
B- GND R A+
