5407934-UIM-C-1119
Johnson Controls Ducted Systems 5
LOCATION
Install the thermostat at or around 5 ft (1.5 m) above the floor in an area
with good circulation of room temperature. See Figure 1.
Do not install the thermostat where it can be affected by the following:
• Drafts or stagnant air behind doors and in corners
• Hot or cold air from ducts
• Radiant heat from sun or appliances
• Concealed pipes and chimneys
• Unconditioned areas, such as an outside wall
MOUNTING THE THERMOSTAT
For most installations, you (the installer) can mount the thermostat by
following the basic installation steps outlined below. However, there may
be some cases where you are not able to penetrate the wall where you
are mounting the thermostat, or where the thermostat being replaced
has left a larger hole than needed for installation. For these and other
cases (including installation with a vertical junction box), you can obtain
an accessory wall plate.

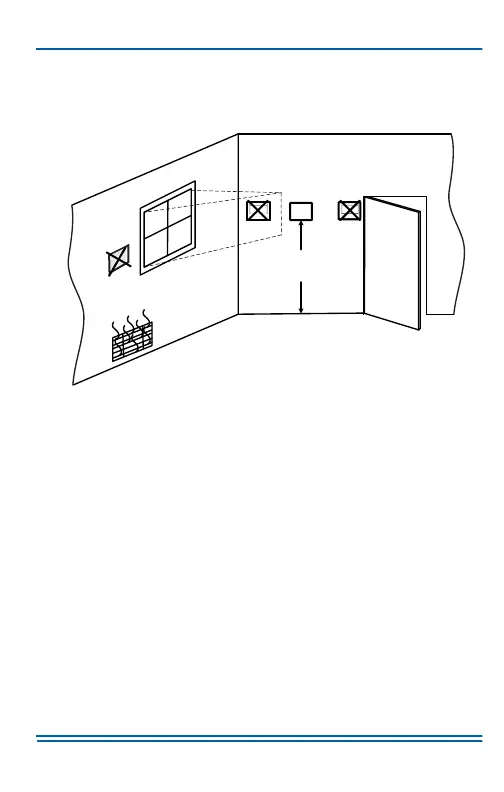

FIGURE 1: Control Location
12
12
12
<(6
)((7
0(7(56
$
