Get To Know Your Thermostat

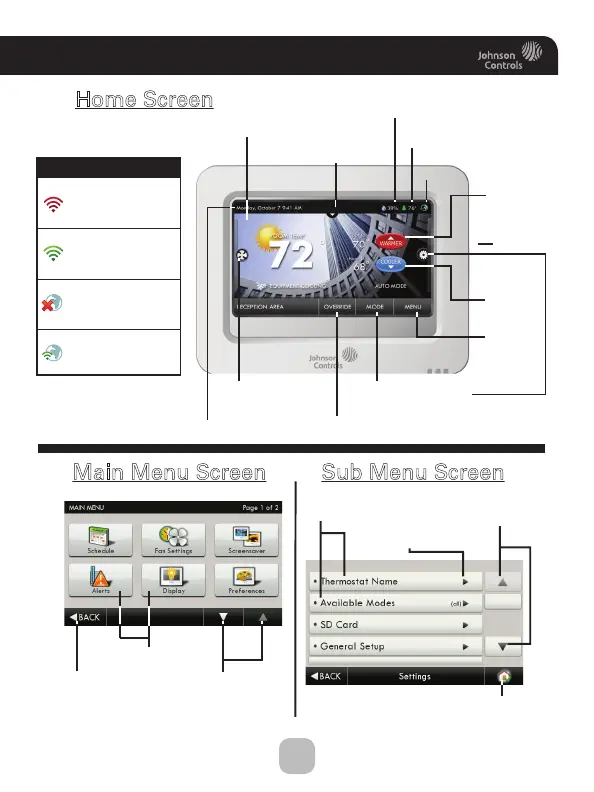

Home Screen
Sub Menu Screen
Home Button
Sub Menu
Buttons
Scrolling
Buttons
Main Menu Screen
Scrolling
Buttons
Back
Button
Menu
Buttons
Indicates Options
Available
Backlit Color Touch Screen Display
Date & Time
Fan Button
Override Button
Outdoor Te mperature
Cooler
Button
Warmer
Button
SD Card
Slot
Menu
Button
Mode Buttons
(If optional accessory is used
or connected to Skyport)
Indoor Humidity Reading
Connectivity Symbol
Dropdown
Sensor Button
Not connected
to Wi-Fi
Connected to local
access point w/IP
address without
Skyport access
Connected to local
access point w/IP
address, but not yet
connected to Skyport
Connected to Skyport
Connectivity Symbol Table
