Installation Instructions

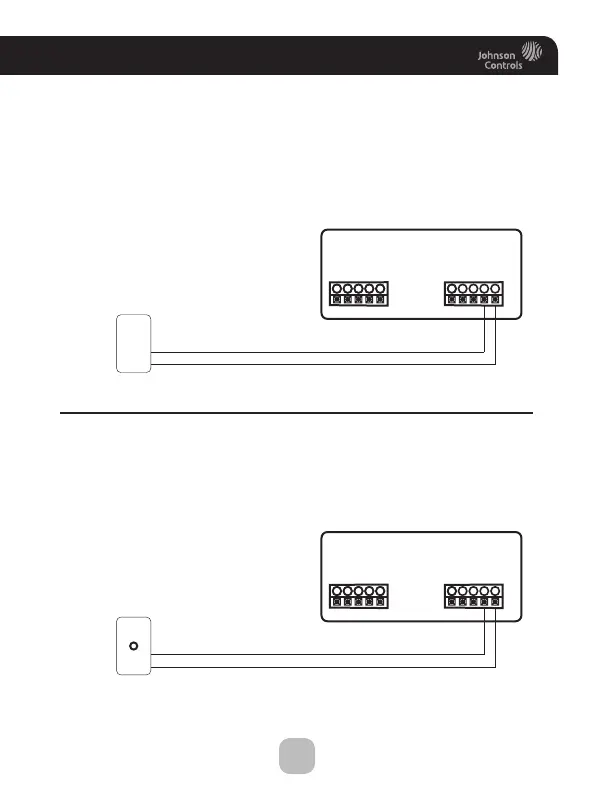

Sample Wiring Diagrams
Outdoor Sensor: ACC-RSEN Temperature Sensor 10K ohm sensor at
77F/25C. Negative Temperature Coefficient.
C R G Y1 Y2 W1/O/B W2 W3/AUX
10K Thermistor
Outdoor Sensor
Use 18-22 gauge thermostat wire.
C R G Y1 Y2 W1/O/B W2 W3/AUX
10K Thermistor
Remote Sensor
Use 18-22 gauge thermostat wire.
SENSOR
SENSOR
ACC-RSEN
Indoor Remote Sensor with Override Button: ACC-RSEN-OVR Temperature
Sensor 10K ohm sensor at 77F/25C. Negative Temperature Coefficient.
(see page 59 for setup instructions)
ACC-RSEN-OVR
