ZFR1800 Series Wireless Field Bus System Technical Bulletin 13
Location and Estimating Guidelines
This section of the document provides general information, guidelines, and a
procedure for determining the optimum location for wireless Metasys systems.
Positioning the wireless Metasys products in the optimum locations with direct,
unobstructed, line-of-sight signal paths enhances the wireless signal strengths
between associated products and typically reduces the number of wireless products
required for your application. Figure 2 shows an example of a line-of-sight path for
a ZFR1800 Series Wireless Field Bus System.
IMPORTANT: For special precautions regarding installing of a ZFR1800
Series system in a hallway, see Appendix C: Restricted Hallway Scenario
.

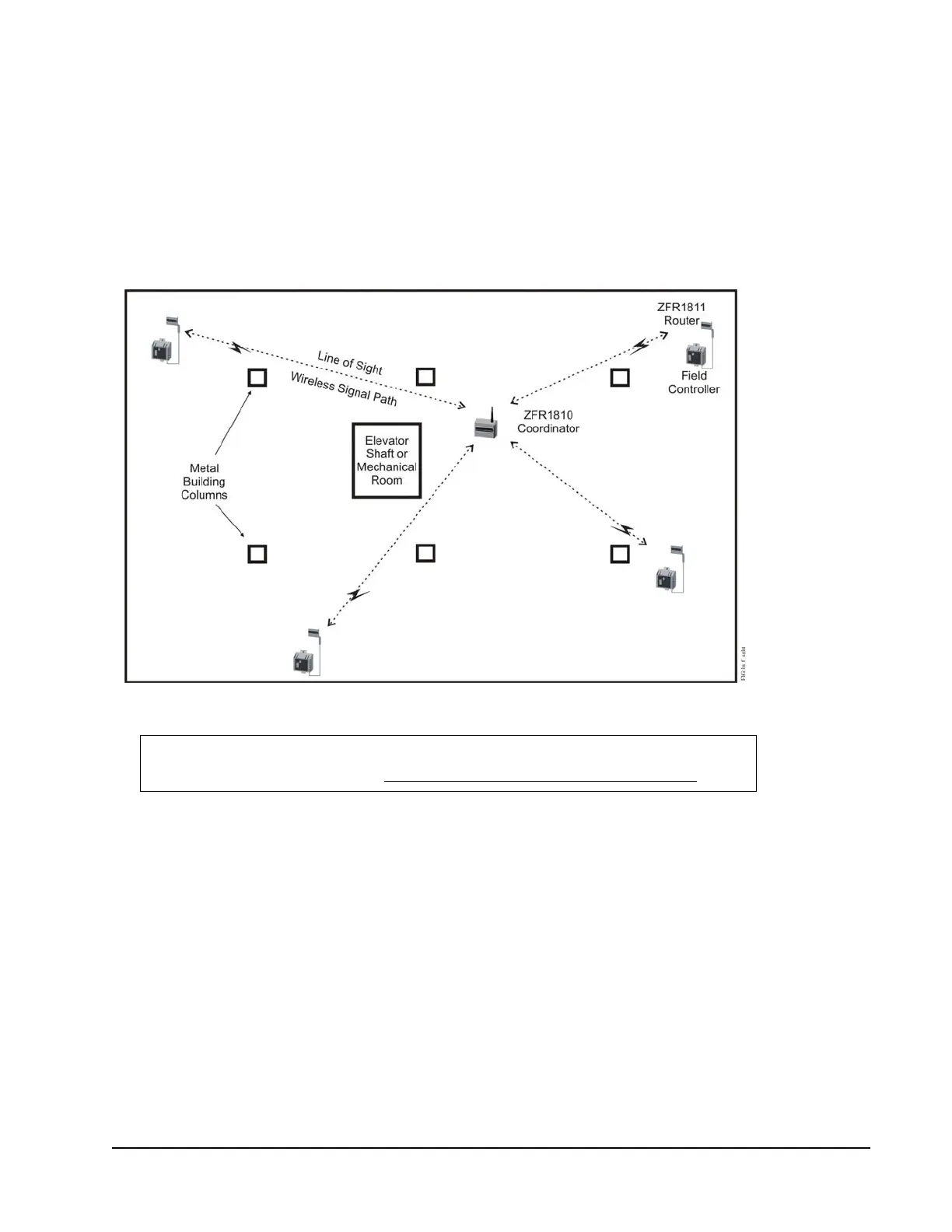

Figure 2: Line of Sight
