Valid Solutions
There are two solutions to the problems presented by a hallway:
• centrally locate the coordinator in the hallway to avoid exceeding the
maximum five-depth addressing limit (Figure 28)
• locate a coordinator at each end of the hallway, using two separate wireless
networks with separate PAN OFFSET instead of one wireless network with a
single PAN OFFSET (Figure 29)

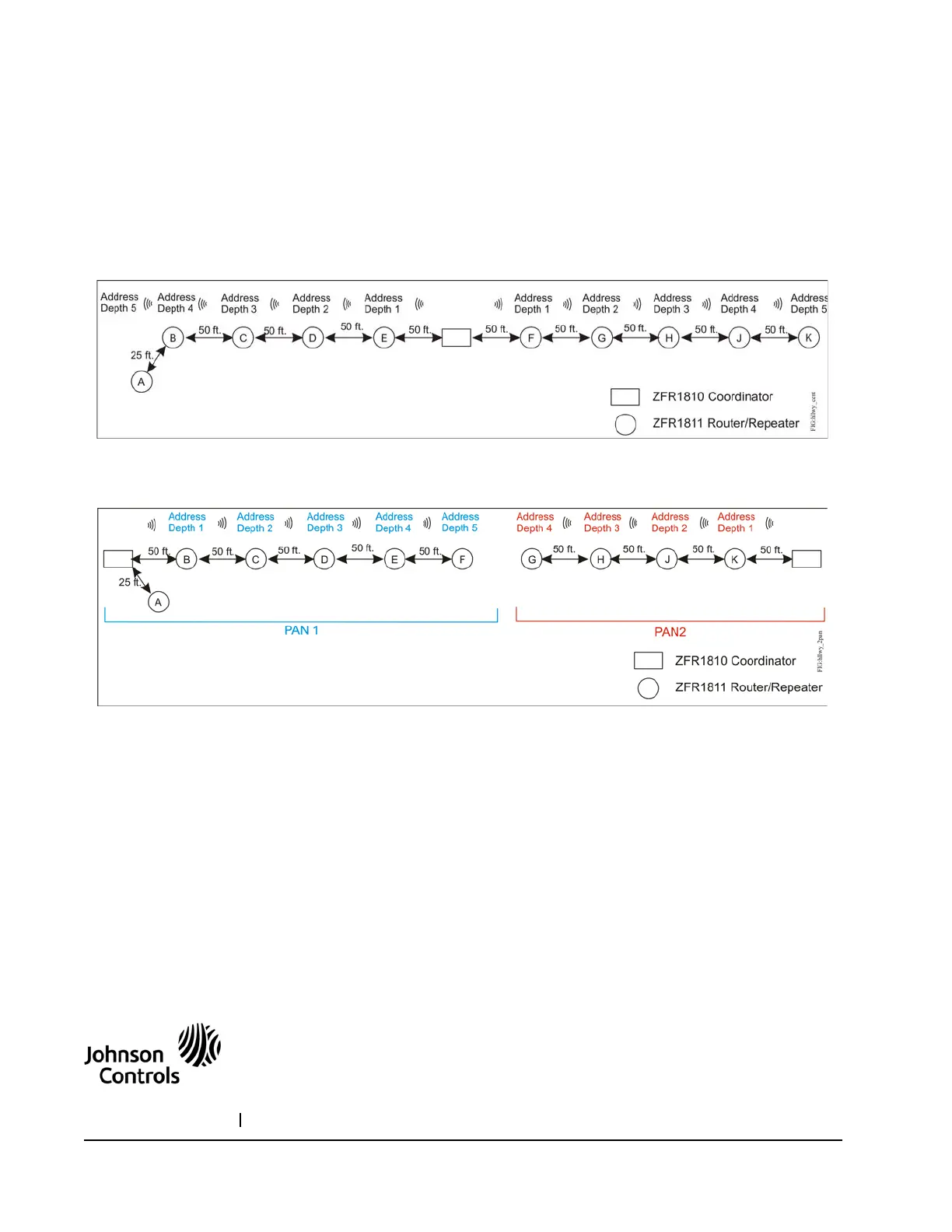

Figure 28: Hallway Scenario - Valid Solution 1
Figure 29: Hallway Scenario - Valid Solution 2
