ZFR1800 Series Wireless Field Bus System Technical Bulletin 23
Installing the ZFR1800 Series Wireless Field Bus System
Ensure that the physical installation of the ZFR1810 Coordinator and all the
ZFR1811 Routers/Repeaters have good line-of-sight communication paths, good
wired connections, and correct DIP switch settings per the guidelines in the
following documents:
ZFR1810 Wireless Field Bus Coordinator Installation Instructions
(Part No. 24-10325-2)
ZFR1811 Wireless Field Bus Router Installation Instructions
(Part No. 24-10325-10)
Pay special attention to these points:
Mount all ZFR1811 Routers/Repeaters and the antenna of the ZFR1810
Coordinator in the same horizontal plane where possible, preferably just above
the ceiling panels. See Figure 7.

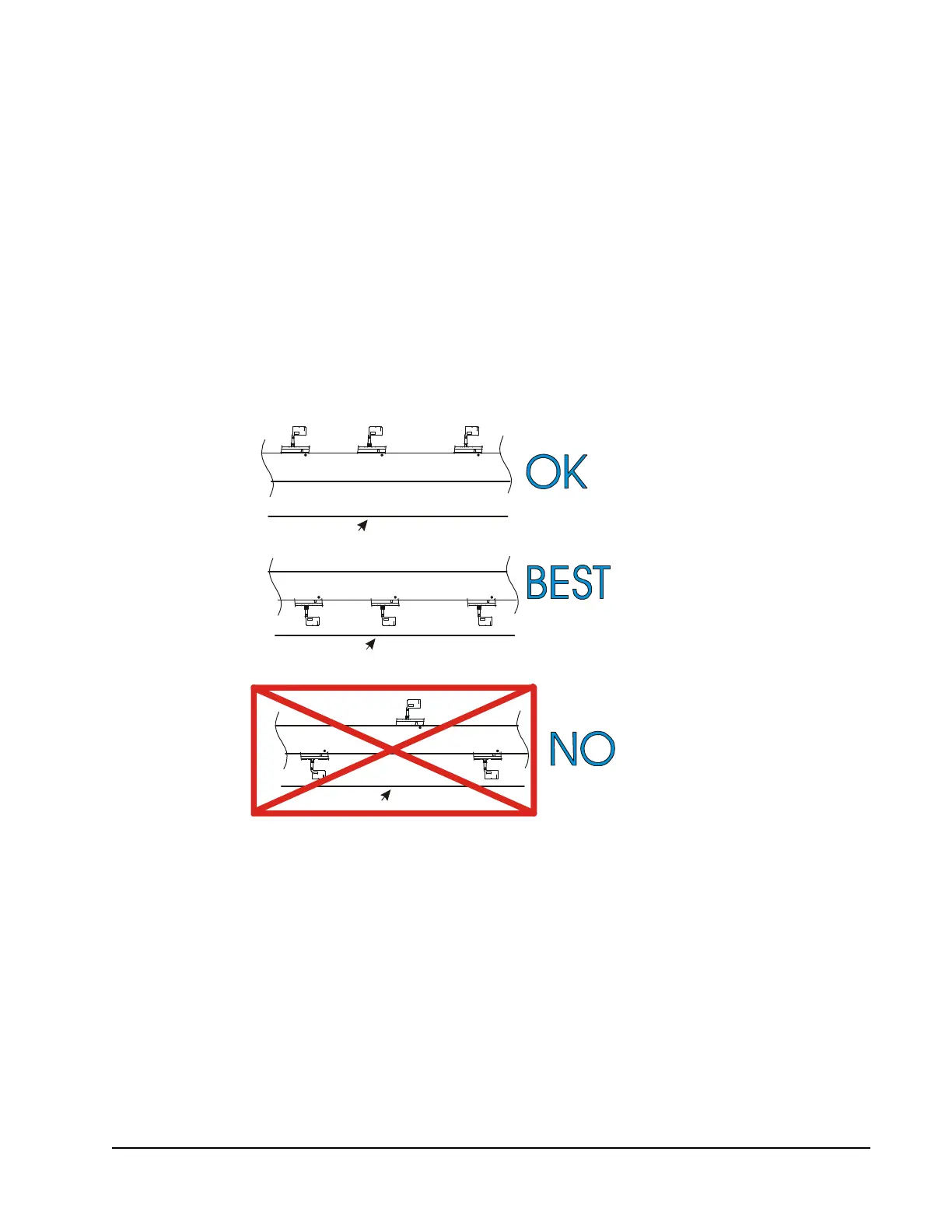

Figure 7: Mount ZFR1811 Routers/Repeaters in the Same Horizontal Plane
Below Pipes, Duct Work, or Metal Obstructions
Drop Ceiling Grid
Ductwork
Drop Ceiling Grid
Ductwork
Drop Ceiling Grid
Ductwork
FIG:ZFR1811_horiz_pln
