6. Add ZFR1811 Routers and ZFRRPT Repeater accessories to serve as repeaters
in order to fill in gaps and provide multiple wireless transmission paths
between products. See Figure 6.
Note: On your floor plan, if you have 15-m (50-ft) diameter (7.5-m
[25-ft] radius) circles that do not overlap with each other, add
ZFR1811 Routers (yellow circle) to serve as repeaters to fill in the gaps
so that every 15-m (50-ft) diameter (7.5-m [25-ft] radius) circle
overlaps with at least two other 15-m (50-ft) diameter (7.5-m [25-ft]
radius) circles.
Note: Typical job sites include a number of major and minor obstructions in
the final occupied space. The router quantity and locations are directly
affected by the number and location of obstructions.

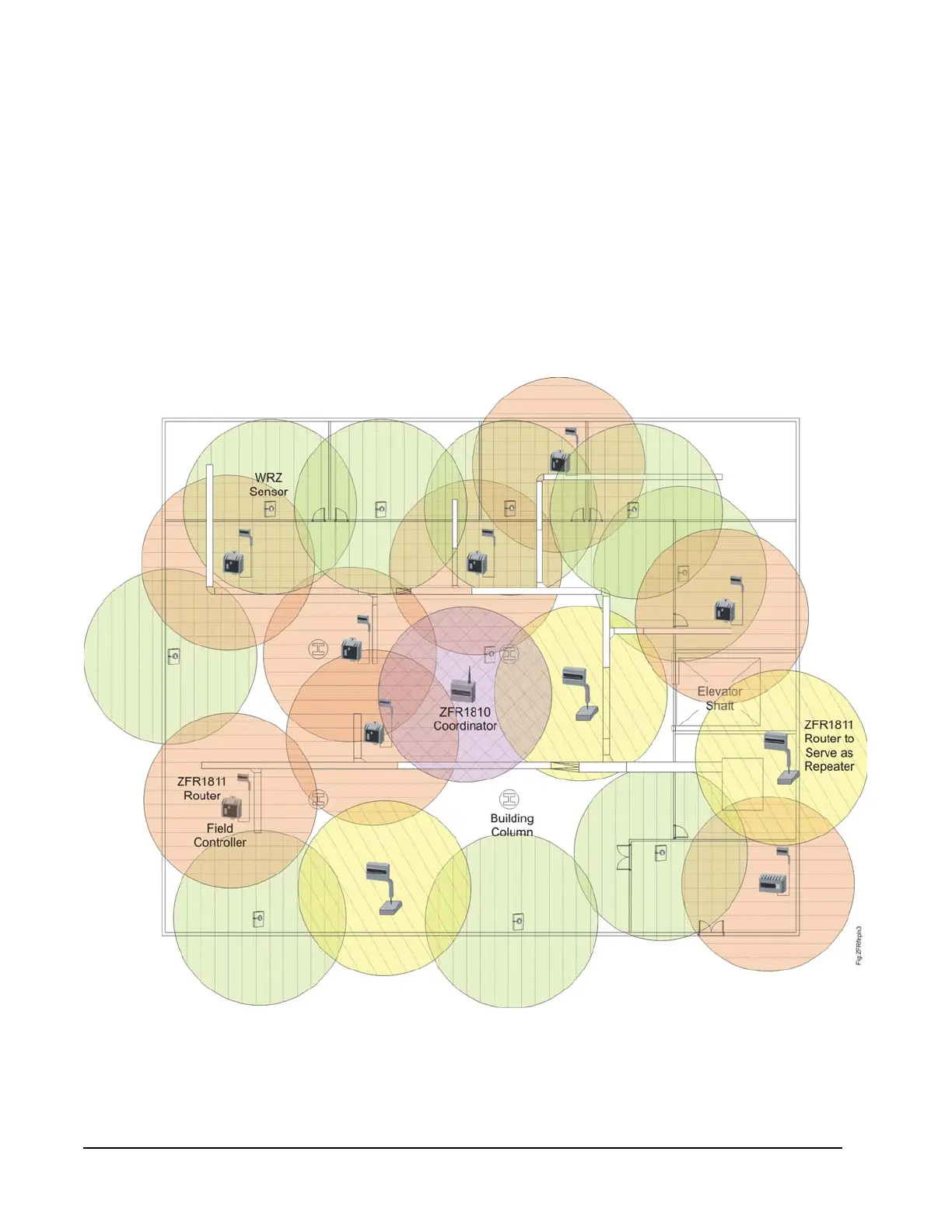

Figure 6: Building Floor Plan with ZFR1800 System Including Repeaters
