7.2 Setting up the display of Chart
1 Click on the [Menu] button on the left tool bar.
The menu is displayed.
2 Click on [View] - [Options] on the menu.
The [View-Options] dialog box appears.
3 Select [Chart Display] in the classification pane.

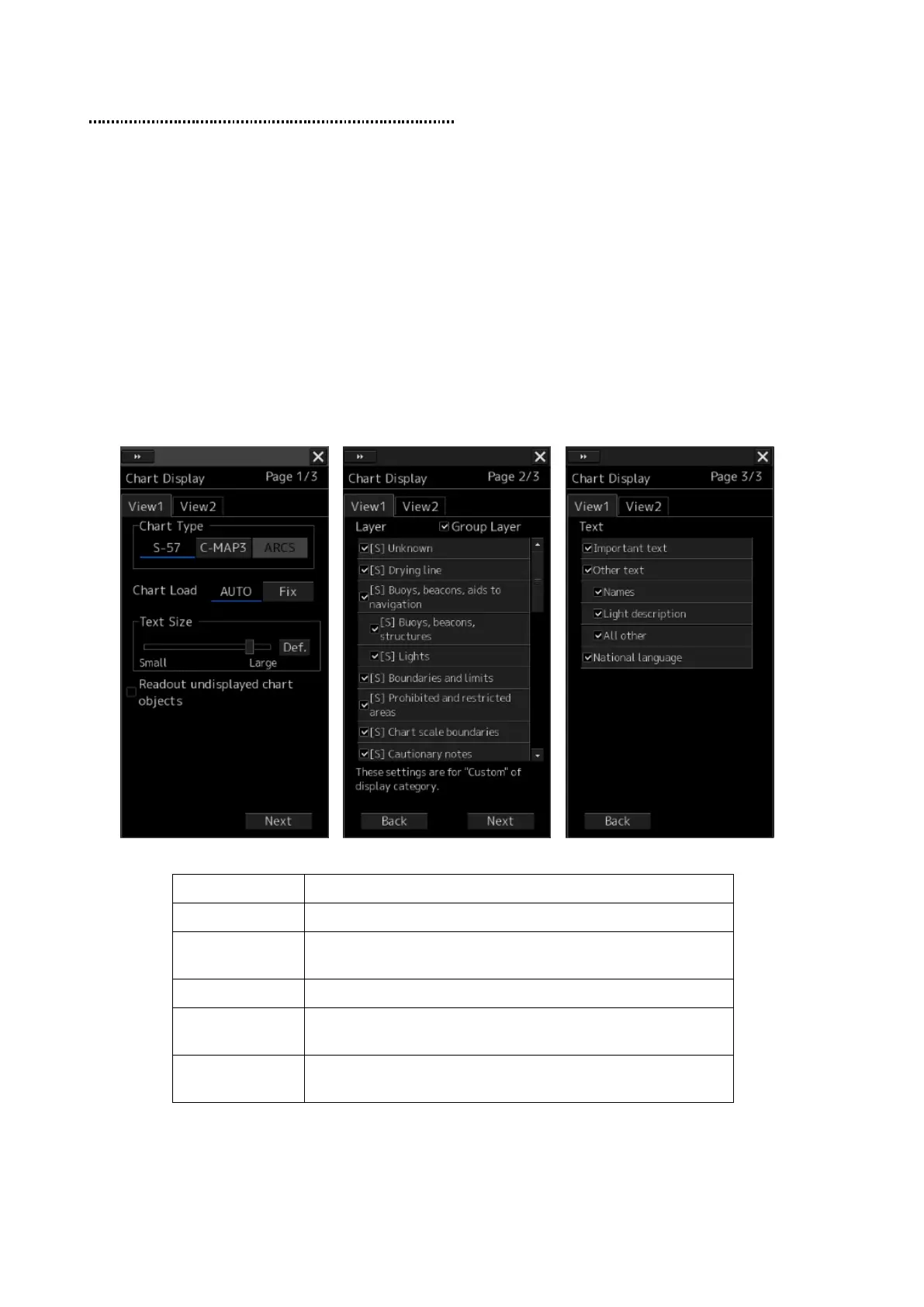

The [Chart Display] dialog is displayed in the edit pane.
The edit pane is divided into three dialogs.
To advance to the next dialog: Click on the [Next] button.
To return to the previous dialog: Click on the [Back] button.
You can set up the same values on both the [View1] and [View2] tabs.
Setting Item
Description of Setting
Chart Type
Select a type of charts to be displayed.
Text Size
Drag the control on the slider and set up the text size (7
levels).
Chart Load
Select a display switching mode for the S-57 chart.
Layer
Select the objects that want to display by selecting the
check boxes of desired objects.
Text
Select the texts that want to display by selecting the
check boxes of desired texts.
