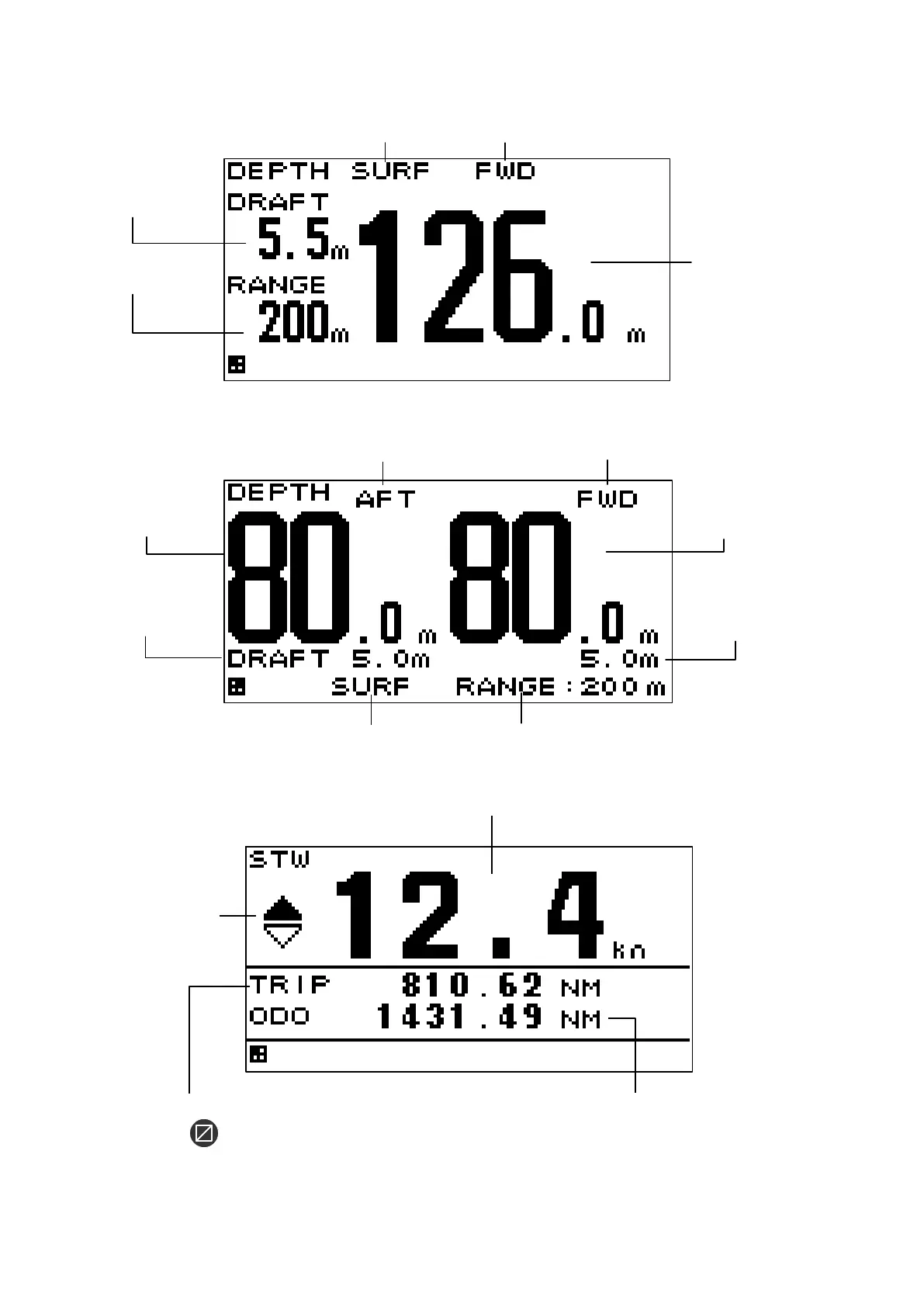

Depth for JFE-380/680 (MID)
1) Single Transducer
    Display mode Position of Transducer



Offset


         Depth
Range







2) Dual Transducer
    Position of Transducer1 Position of Transducer2


Depth of   Depth of
Transducer1        Transducer2



Offset of          Offset of
Transducer1        Transducer2





    Display mode   Range

  Speed through the water (Doppler Log)
























STW: Speed through the water
TRIP: Trip
Press the            for 1 second to reset TRIP.
Direction
ODO: Total distance
ODO is reset by menu operation.
