JUKI LZ-2290C-F User Manual

– 94 –
5-3-9. Pattern 3

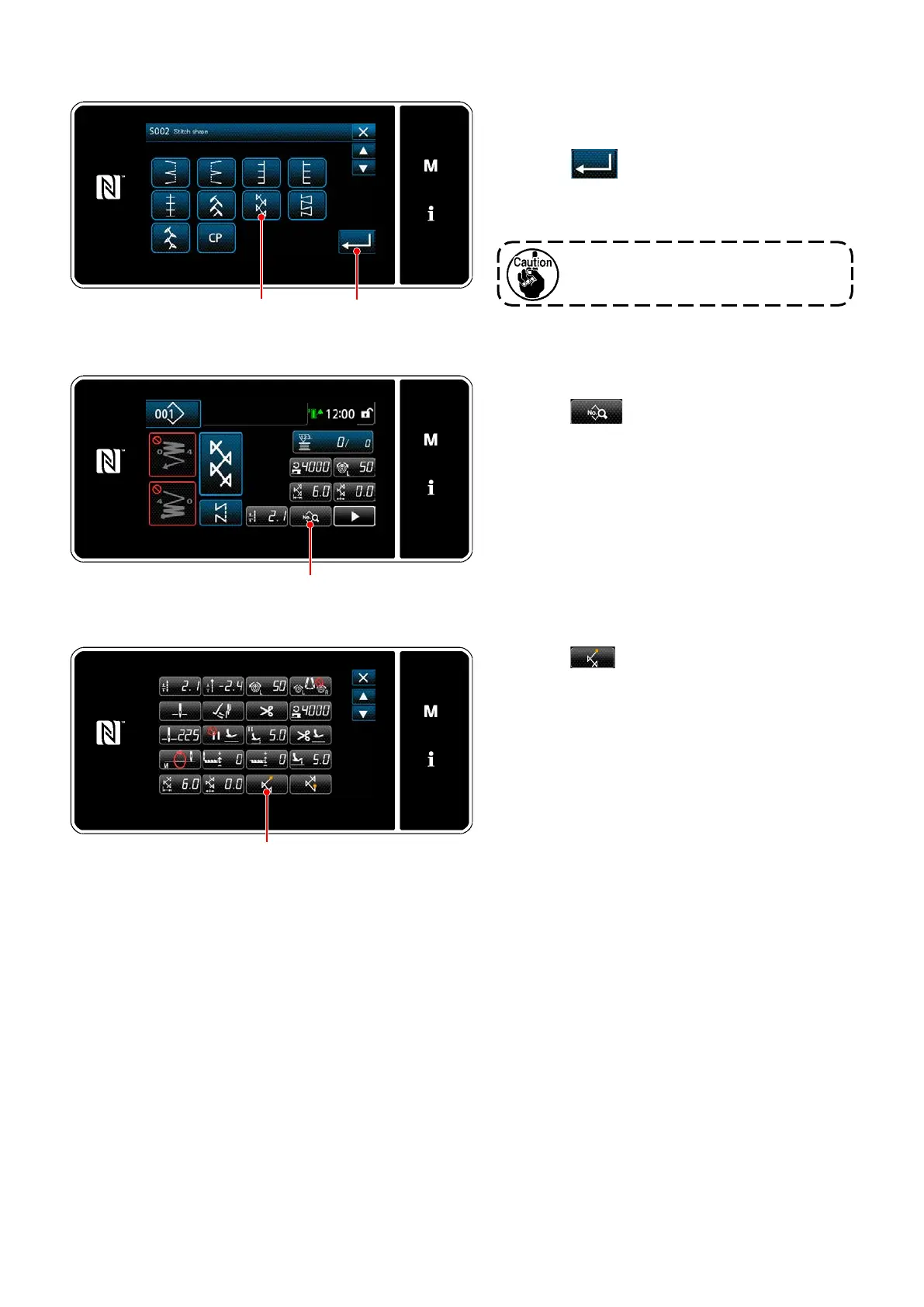

<Sewing shape selection screen>
1) Select pattern 3 stitch
󰿿
on the sewing shape
selection screen.
2) When
󱀀
is pressed, the entered value
is conrmed and the screen is returned to the
"Sewing screen".
󱀀
3) Setting of the position of sewing start.
・
Press
󱀁
on the sewing screen.
The "Sewing data edit screen" is displayed.
* Refer to
"5-3-1. 4) Setting the zigzag width,
stitch baseline and stitch length." p. 78
for the zigzag width, stitch baseline position
and stitch length.
<Sewing screen>
󱀁
󰿿
Feed amount becomes “0” when the
hand switch is pressed.
<Sewing data edit screen>
・
When
󱀂
is pressed, the "Sewing start-
ing position selection screen" is displayed.
󱀂

JUKI LZ-2290C-F Specifications

General

Model	LZ-2290C-F
Stitch Type	Zigzag
Max Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Max Zigzag Width	10 mm
Feed Dog	3-row
Lubrication	Automatic
Motor Power	550 W
Sewing Speed	5, 000 stitches per minute
Needle	DPx5
Hook	Rotary hook
Thread	Synthetic thread
Motor Type	Servo motor
Type	Electronic Zigzag Lockstitch Sewing Machine
