JUKI MO-2500 - Position of the Feed Dog

–
16
–
Standard adjustment
❸
(A) Equidistant clearance
(E)
❷
❶
Interference should be prevented
(C)
(B)
(D)

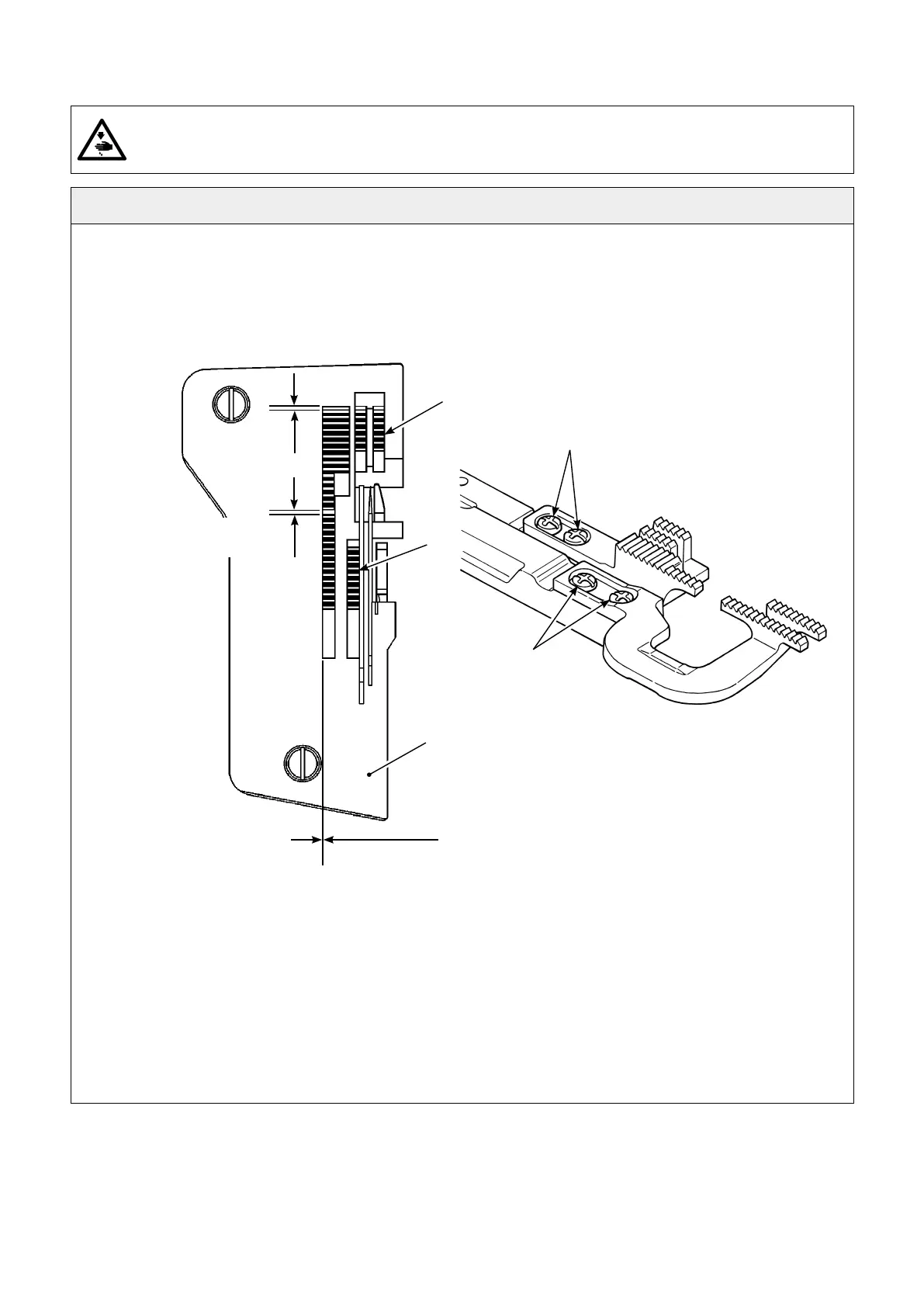

11. Position of the feed dog
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o󰀨 and ascertaining that the motor is at rest.
1 mm
(When the feed
amount is maximized/
di󰀨erential feed ratio:
0.7/ closest point)
