11
–

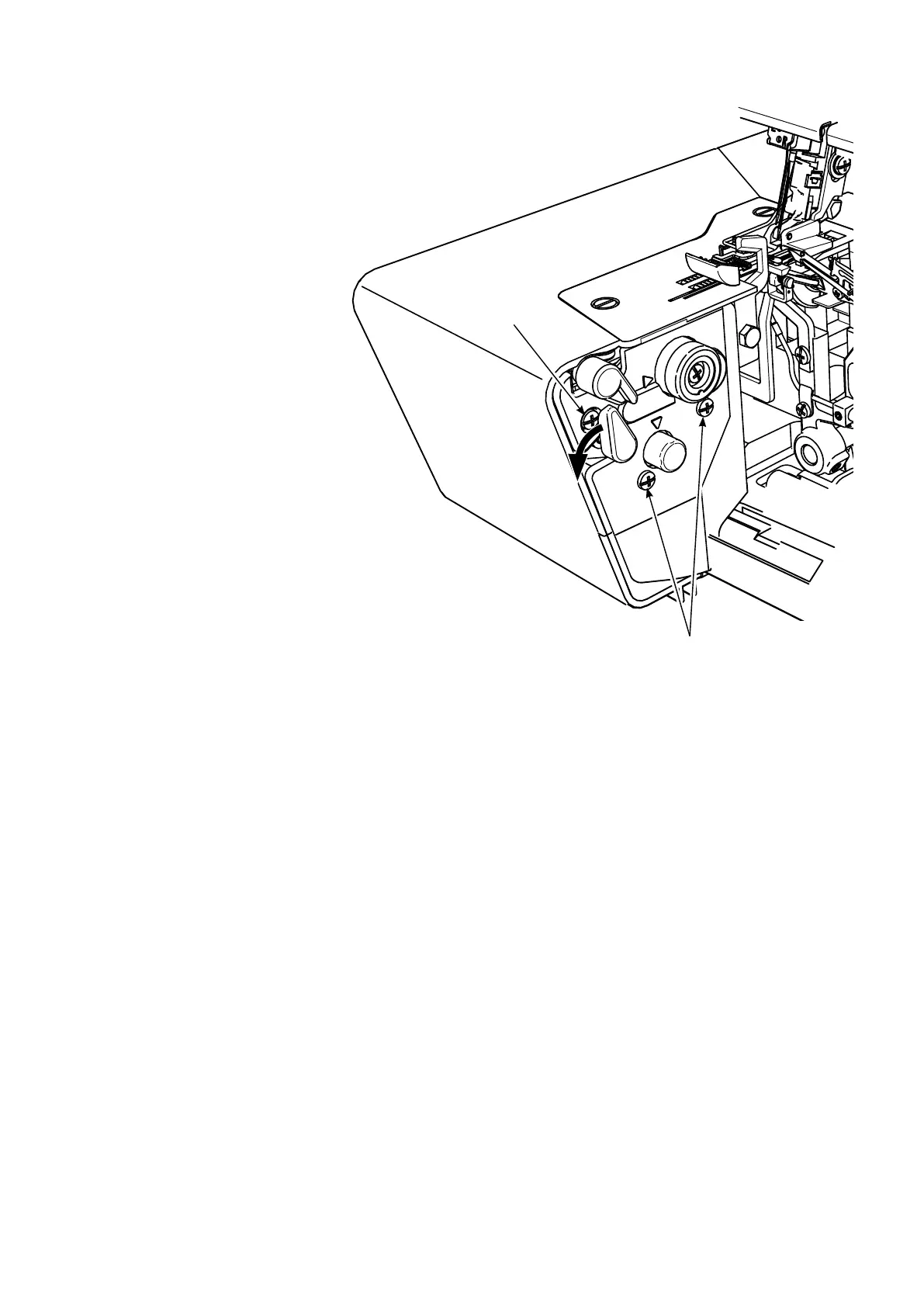

7. Removing the looper cover guide
○
Remove the setscrews
❶
.
○
Remove the cover with the knife changeover lever
aligned with the position of notch on the cover.
❶
❶
